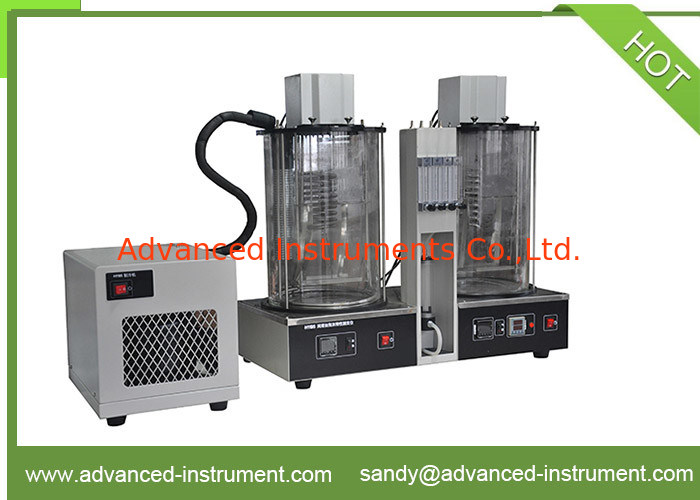

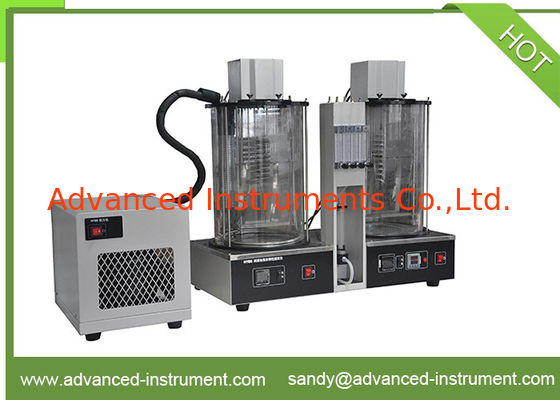

ASTM D892 Oil Analysis Equipment Foaming Tendency Bath Apparatus With Cooler

Foaming Tendency Apparatus Bath with Cooler

Introduction

The tendency of oils to foam can be a serious problem in systems such as high-speed gearing, high-volume pumping, and splash lubrication. Inadequate lubrication, cavitation, and overflow loss of lubricant can lead to mechanical failure. This instrument is used in the evaluation of oils for such operating conditions.

I.Main features

1.This equipment in separate,including heating bath and precise flowmeter

2.The material of bath is high temperature resistant Borosilicate glass,Φ300×450mm.It fulfills the standard requirements.

3.Environmental oil bath heating can reduces the harm of smoke to peoples,and it also has high heat insulation effect.

4.Heater is stainless steel

5.Flow meter is highly precise with needle valve,0~94ml/min

6.Air filter has glass wool

7.Cooler is included.

8.Working temperature:ambient~250℃,with safety device for over-heated or low liquid level

9.Micro-computer controller,PID function,digitally display temperature(continuously display during test),accuracy 0.1℃,Pt100 temperature sensor.

II.Technical specifications
