IEC/ EN 60332-1 Flame Propagation Test Equipment for a Single Insulated Cable

IEC/ EN 60332-1 Flame Propagation Test Equipment for a Single Insulated Cable

    • IEC/ EN 60332-1 Flame Propagation Test Equipment for a Single Insulated Cable
    • IEC/ EN 60332-1 Flame Propagation Test Equipment for a Single Insulated Cable
    • IEC/ EN 60332-1 Flame Propagation Test Equipment for a Single Insulated Cable
    • IEC/ EN 60332-1 Flame Propagation Test Equipment for a Single Insulated Cable
    • IEC/ EN 60332-1 Flame Propagation Test Equipment for a Single Insulated Cable

    Detail produk:

    Tempat asal: CINA
    Nama merek: AI
    Sertifikasi: ISO
    Nomor model: SCV

    Syarat-syarat pembayaran & pengiriman:

    Kuantitas min Order: 1 set
    Harga: Bisa dinegosiasikan
    Kemasan rincian: Kasus Kayu Lapis
    Waktu pengiriman: 60 hari
    Syarat-syarat pembayaran: Western Union, T/T, L/C
    Hubungi sekarang
    Detil Deskripsi produk
    Standar uji: IEC/ EN 60332-1 Catu Daya: 110V AC 60Hz / 230V AC 50Hz, 5A
    Suhu sekitar: Pengoperasian 10°C Hingga 35°C Gas: Udara dan Propana
    Ukuran: 560 mm (L) x 380 mm (L) x 1400 mm (T) Berat: 36kg

    IEC/ EN 60332-1 Flame Propagation Test Equipment

    INTRODUCTION

    Single Cable Vertical Flame Tester is used for the vertical flame propagation of a single insulated wire or cable is a bench scale test to determine the resistance of a single cable to a 1kW flame application. It conforms to IEC60332-1-2 (flame propagation) and IEC60332-1-3 (test for flaming droplets).



    FEATURE

    • Stainless steel box, the height of 1300mm, width of 300mm, depth of 450mm.

    • Two stainless steel rods, can bind single wire cable or optical cable sample.

    • 1KW mixed standard burner, can provide the standard test fire source.

    • Regulating gas and air flow rate of the rotor flow meters.

    • Pressure gauge and pressure relief valve to ensure that the pressure output is 0.1MPA.

    • Electric spark ignition device.

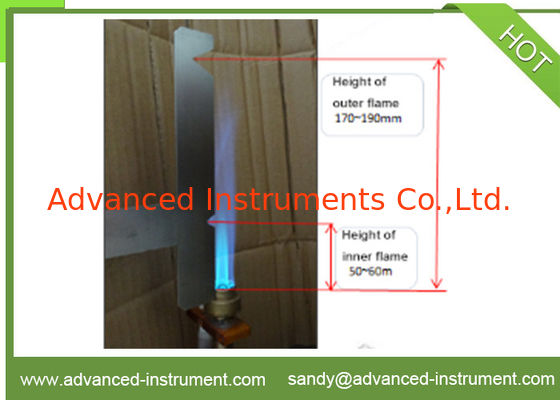

    • Flame height measuring tool.

    • Up to four time modes can be selected according to different sample diameters.

    • Calibration kit for the testing flame.



    Installation requirements

    1 Electrical 110V AC 60Hz / 230V AC 50Hz
    2 Ambient Temperature Operating 10°C to 35°C
    3 Gas air and propane

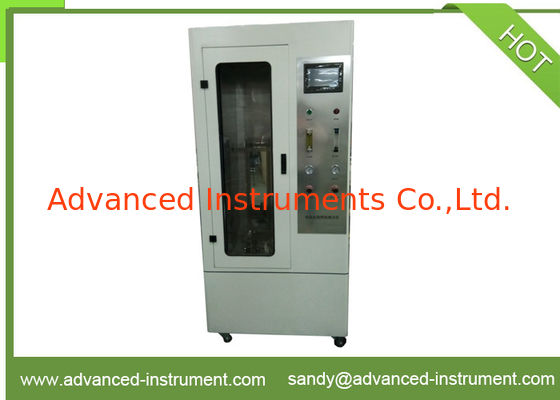

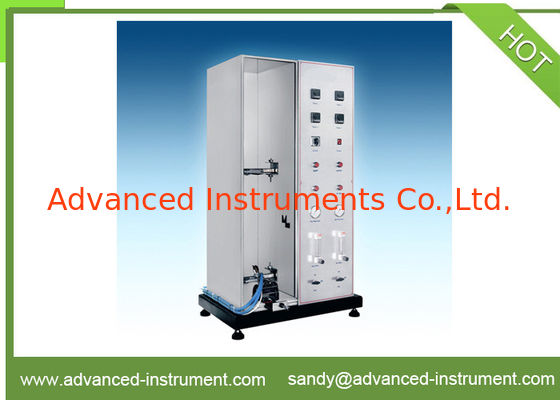

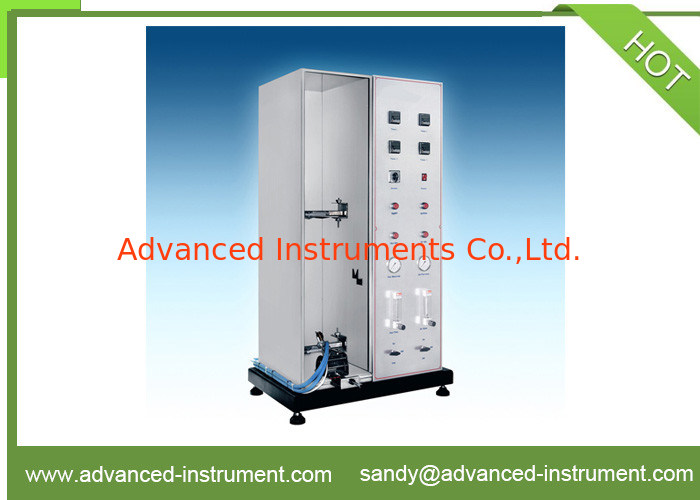

    Photo of Flame Propagation Test Equipment for a Single Insulated Cable

    IEC/ EN 60332-1 Flame Propagation Test Equipment for a Single Insulated Cable
