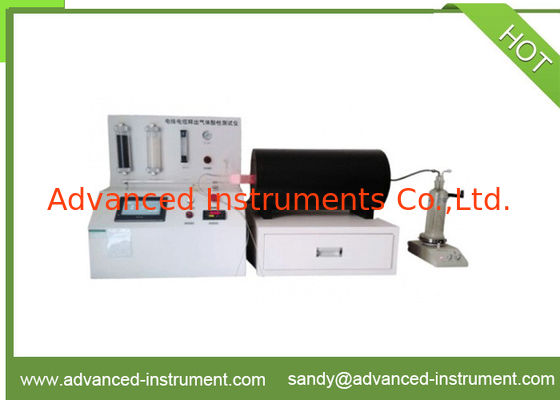

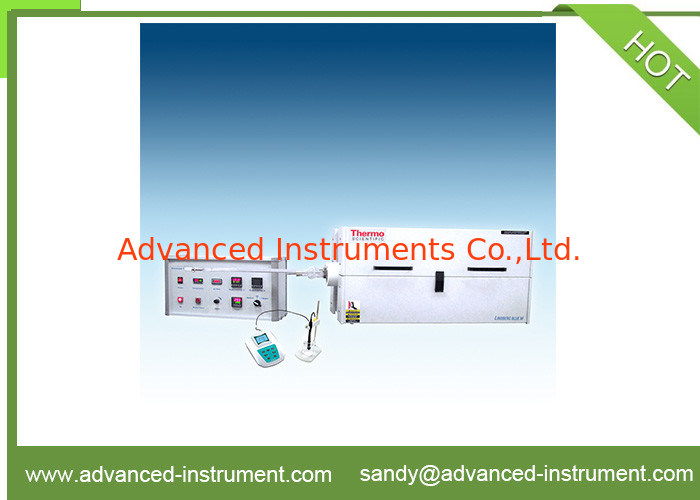

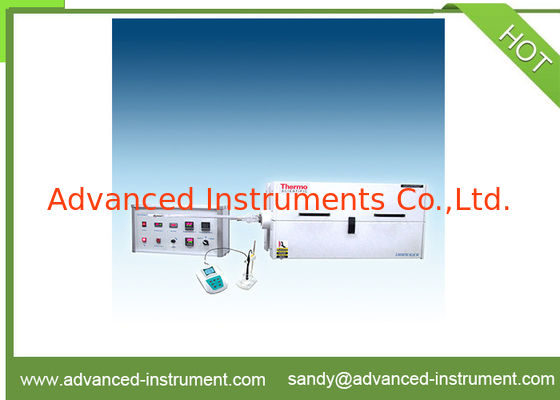

Wire and Cable Halogen, PH & Conductivity Testing Equipment

INTRODUCTION

The International Electrotechnical Commission IEC 60754 Part 1 and Part 2 test is performed to determine the degree of acidity of gases evolved during the combustion of materials taken from electric cables by measuring the pH & conductivity.
IEC 60754-1 is halogen-free cable came from and including the polymer to halogenated compounds on the basis of the additive compounds emitted during combustion, except the fluoridation hydracids, it is measure for gas of halogen volume, IEC 60754-2 for electrical or optical cable from compounds emitted during the combustion of measure the gas of oxidation limit.​

FEATURE

• 1200°C Split-Hinge Tube Furnaces for horizontal use.

• ​Heating element modules for superior radial and linear temperature uniformity and fast heat up and cool down.

• ​Long-life, energy-efficient elements require little or no maintenance.

• ​Mode conversion switch (Test method of IEC 60754-1&2 could be selected).

• ​Alarm Temperature Controller: Temp controller to protect overheating of furnace.

• ​Quartz work tube and sample lading assembly.

• ​pH and conductivity measuring instruments with digital display and electrodes Stirrer.

• ​Mass flow meter control the flow rate of air and digital display.

• ​Activated Charcoal (air filtering): Filter for filtering the supplied air (activated charcoal).

• Silica Gel (air drying): Device for drying the supplied air.

• ​100 ceramic sample boats.
