BS 476-6 Fire Propagation Index Tester for Flame Spread Test of Building Material

BS 476-6 Fire Propagation Index Tester for Flame Spread Test of Building Material

    • BS 476-6 Fire Propagation Index Tester for Flame Spread Test of Building Material
    • BS 476-6 Fire Propagation Index Tester for Flame Spread Test of Building Material
    • BS 476-6 Fire Propagation Index Tester for Flame Spread Test of Building Material
  • BS 476-6 Fire Propagation Index Tester for Flame Spread Test of Building Material

    Detail produk:

    Tempat asal: CINA
    Nama merek: AI
    Sertifikasi: ISO
    Nomor model: FPT

    Syarat-syarat pembayaran & pengiriman:

    Kuantitas min Order: 1 set
    Harga: Bisa dinegosiasikan
    Kemasan rincian: Kasus Kayu Lapis
    Waktu pengiriman: 60 hari
    Syarat-syarat pembayaran: Western Union, T/T, L/C
    Menyediakan kemampuan: 20 set per bulan
    Hubungi sekarang
    Detil Deskripsi produk
    Standar uji: Uji Indeks Propagasi Kebakaran BS476-6 Pasokan Gas: G112, sebagaimana ditentukan dalam BS 4947
    Berat: 46kg Jaminan: 1 tahun
    Warna: Putih Catu Daya: Nominal 230 Volt 10 AMPS

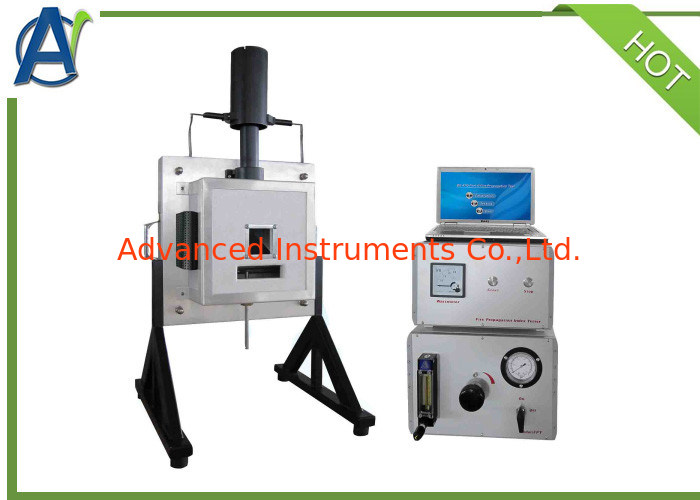

    BS 476-6 Fire Propagation Index Tester

    INTRODUCTION

    BS 476 part 6 specifies a method of test, the result being expressed as a fire propagation index, that provides a comparative measure of the contribution to the growth of fire made by an essentially flat material, composite or assembly. It is primarily intended for the assessment of the performance of internal wall and ceiling linings.​





    FEATURE

    • Stainless steel support frame andCalcium silicate board combustion chamber.

    • Three kinds of sample holders for different thickness of the specimens.

    • Low reflective black finished mild steel Chimney and Cowl assembly complete with thermocouple mounting points.

    • Compliant stainless steel gas burner.

    • Two K type mineral insulated thermocouples complete with ceramic insulators.

    • Two pencil type heaters with 1000w installed in combustion chamber.

    • Control gas instrumentation including electronic gas on/off valve, flow regulating valve, flow meter and manometer.

    • Intelligent single phase power controller with feedback loop for accurate control of electric heating elements

    • DAQ record automatically the mV output from the thermocouples of the flue gases throughout the duration of the test.

    • According to the test time, automatically adjust the output power.

    Data Acquisition system:

    • Prompted software interface

    • Data recording and display of cowl temperature against time

    • Data recording and display of ambient temperature against time

    • Display of power value in kW

    • Calibration routine

    • Calculation of output rise and calibration value

    Installation requirements

    Electrical 230 volts Nominal 10 Amps
    Ambient Temperature 10°C to 35°C
    Gas supplies The gas supply specified in the Standard is Standard test gas G112, as specified in BS 4947
    Flow Gas flow for burner adjustable from 0 to 5 nl/min
    Pressure 1KPa
    Dimensions

    Apparatus: 400mm (W) x 600mm x (H) x 300mm (D)

    Control module: 400mm (W) x 500mm x (H) x 400mm (D)

    Weight 46KG
    Applicable standards BS476-6
