Name: IEC60044 Electrical CT Analyzer Current Transformer Test Instrument
Brand: Advanced Instruments Co.,Ltd
SKU: CPT-3
Availability: InStock

Rumah Produk Alat Uji Kelistrikan

IEC60044 Electrical CT Analyzer Current Transformer Test Instrument

Detail produk:

Tempat asal:	CINA
Nama merek:	AI
Sertifikasi:	ISO
Nomor model:	CPT-3

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 set
Harga:	Bisa dinegosiasikan
Kemasan rincian:	Karton
Waktu pengiriman:	15 hari
Syarat-syarat pembayaran:	T/T, Western Union, L/C
Menyediakan kemampuan:	100000 set per bulan

Hubungi sekarang

Detil Deskripsi produk

Catu Daya:	AC220V±10%, 50/60Hz±10%	Menampilkan:	LCD
kata kunci:	Penguji Transformator Arus CT Analyzer	Standar:	EC60044-1, IEC60044-6, IEC60044-2, IEC60044-5, C57.13
Rentang pengukuran:	0~200V	Pengukuran saat ini:	0~10A

Current Transformer CT Analyzer CT Testing Equipment
IEC60044 Electrical CT Analyzer Current Transformer Test Instrument

Tester for current transformer:

1.Excitation curve and parameters test
2.Turns ratio test
3. Ratio and phase error test
4. Polarity mark check
5. Coil resistance measurement
6. Secondary loop burden measurement
7. Error line curve test for protection CT
8. Transient CT parameters test
9. CT nameplate guess
10.Saturation hysteresis loop curve measurement

Applications of CT Current Transformer Tester:

1 CT nameplate check
2 CT parameters check in work burden
3 CT transient parameters analysis
4 CT ratio and phase error calibration

Specifications:

Item Name		CT Current Transformer Tester
Test standards		IEC60044-1, IEC60044-6, IEC60044-2, IEC60044-5, C57.13
Power supply		AC220V±10%, 50/60Hz±10%
Voltage output		0.1~125V (AC)
Current output		0.001~5A(RMS)
Power output		300VA
Max. knee voltage measurement		45KV
Current measurement	Range	0~10A (automatically change range in 0.1/0.4/2/10A)
	Error	<±0.1%+0.01%FS

Voltage measurement	Range	0~200V (automatically change range in 1V/10V/70V/200V)
	Error	< ±0.1%+0.01%FS
Turns ratio measurement Range		1~35000 1~2000, error<0.05% 2000~5000,error<0.1% 5000~35000,error<0.2%
Phase measurement	error	±2min
	resolution	0.01min
Coil resistance measurement	Range	0~80Ω (automatically change range in 2ohm/20ohm/80ohm)
	Error	< 0.2%RDG+0.02%FS
	Maximum resolution : 0.1mΩ
Temperature measurement		-50~100 Celsius degree; error<3 Celsius degree
CT Secondary burden	Range	0~160ohm (automatically change range in 2ohm/20ohm/80ohm/160ohm)
	Error	<0.2%RDG+0.02%FS
	Maximum resolution : 0.001ohm
Memory capacity			>1000 groups test results
Working condition temperature			-10℃~50℃; moist ≤90%

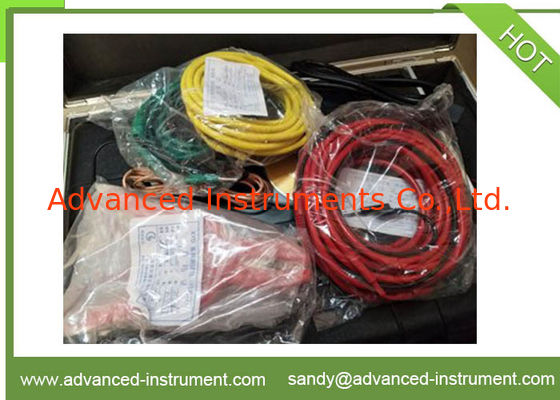

Pictures of Current Transformer CT Test KIt spares

IEC60044 Electrical CT Analyzer Current Transformer Test Instrument
