ASTM D877 D1816 Test Instrument Insulation Oil Dielectric Strength Tester

ASTM D877 D1816 Test Instrument Insulation Oil Dielectric Strength Tester

    • ASTM D877 D1816 Test Instrument Insulation Oil Dielectric Strength Tester
    • ASTM D877 D1816 Test Instrument Insulation Oil Dielectric Strength Tester
    • ASTM D877 D1816 Test Instrument Insulation Oil Dielectric Strength Tester

    Detail produk:

    Tempat asal: CINA
    Nama merek: AI
    Sertifikasi: ISO
    Nomor model: BDV-1

    Syarat-syarat pembayaran & pengiriman:

    Kuantitas min Order: 1 set
    Harga: Bisa dinegosiasikan
    Kemasan rincian: Karton
    Waktu pengiriman: 15 hari
    Syarat-syarat pembayaran: T/T, Western Union, L/C
    Menyediakan kemampuan: 100000 set per bulan
    Hubungi sekarang
    Detil Deskripsi produk
    Catu Daya: AC220V±10%, 50Hz/60Hz Menampilkan: LCD
    Standar uji: IEC60156/IS6792/BS5874/ASTM D1866/ASTM D877 Output tegangan: AC 0V~100kv
    Ukuran: 620mm*430mm*330mm Berat: 41kg
    kata kunci: Penguji Kekuatan Dielektrik Minyak Isolasi



    ASTM D877 D1816 Insulation Oil Dielectric Strength BDV Tester





    I. Introduction:

    BDV-1 insulation oil dielectric strength tester is designed according to the national standard IEC156 Transformer Oil Dielectric Strength Test Method;

    This insulating oil withstand voltage test equipment has large LCD display, micro-printer and can store 100 groups data;

    This insulation oil breakdown voltage test set is multi-functional, stable, and easy for operation;



    II. Functions:

    • Breakdown test of user-defined;

    • Proof test;

    • IEC60156/IS6792/BS5874 test;

    • ASTM D1816 standard test;

    • ASTM D877 standard test;

    • 5 minutes standard test;

    • Manual test;

    • Calibration interface for customers;

    • This transformer oil tester can upload data to PC and making word report automatically;

    • Result can be printed by insulation oil tester;



    III.Specifications:

    Output voltage AC 0V~100KV
    Rate of voltage rise 0.5kv/s±5%, 2kv/s±5%, 3kv/s±5%,5kv/s±5%
    Max test times setting for user-defined mode 9
    Stir time setting for user-defined mode 0~999s
    Waiting time setting for user-defined mode 0~999s
    Test error 3%RDG+0.3%FS
    Display 256´128 LCD
    Maximum storage capacity 100 groups of test data
    Power supply AC220V±10%, 50Hz/60Hz
    Working environment 0-50℃, ≤80%RH
    Size 620 mm*430mm*330mm
    Weight 41kg

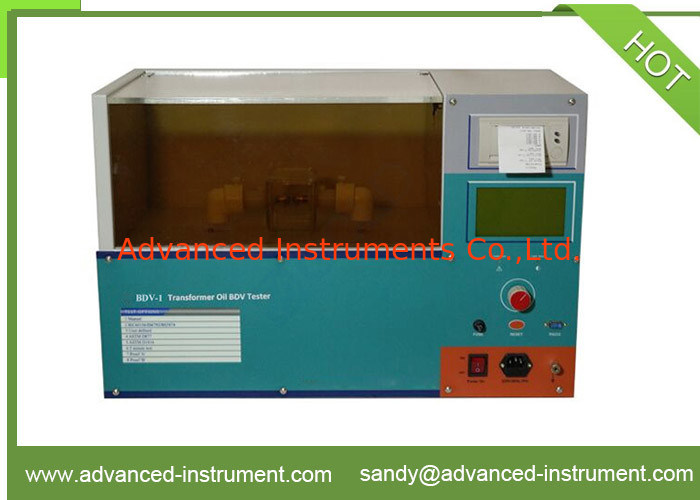

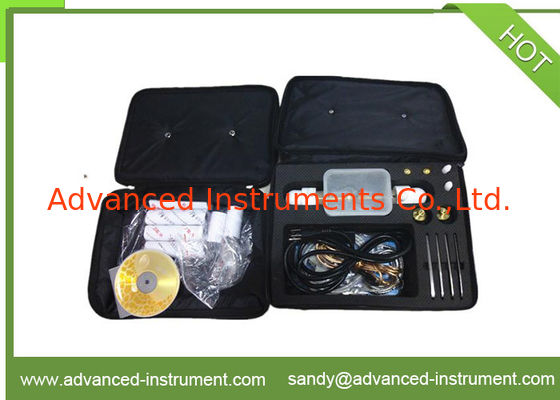

    Picture of BDV-1 Insulation Oil Dielectric Strength Tester

    ASTM D877 D1816 Test Instrument Insulation Oil Dielectric Strength TesterASTM D877 D1816 Test Instrument Insulation Oil Dielectric Strength Tester
