Loop Resistance Instrument Contact Resistance Test Equipment 100A 200A 400A 600A

Loop Resistance Instrument Contact Resistance Test Equipment 100A 200A 400A 600A

    • Loop Resistance Instrument Contact Resistance Test Equipment 100A 200A 400A 600A
    • Loop Resistance Instrument Contact Resistance Test Equipment 100A 200A 400A 600A
    • Loop Resistance Instrument Contact Resistance Test Equipment 100A 200A 400A 600A

    Detail produk:

    Tempat asal: CINA
    Nama merek: AI
    Sertifikasi: ISO
    Nomor model: CRT

    Syarat-syarat pembayaran & pengiriman:

    Kuantitas min Order: 1 set
    Harga: Bisa dinegosiasikan
    Kemasan rincian: Kasus Kayu Lapis
    Waktu pengiriman: 15 hari
    Syarat-syarat pembayaran: T/T, Western Union, L/C
    Menyediakan kemampuan: 100000 set per bulan
    Hubungi sekarang
    Detil Deskripsi produk
    Catu Daya: AC220V±10%, 50Hz/60Hz Menampilkan: LCD
    Rentang pengukuran: 0-1999,9 μΩ Mengukur Arus: DC 100A, 200A, 400A, 600A
    Jaminan: 1 tahun kata kunci: Instrumen Resistensi Loop, Penguji Resistensi Kontak





    100A 200A 400A 600A Low Contact Loop Resistance Tester





    Introduction:

    • Contact resistance tester is used to test the contact resistance of circuit breaker or high current cable contacts.

    • It is designed according to IEC62271.

    • The main application of the tester is measurement of circuit breaker contact resistance.

    • All the test results of loop resistance tester could be print by the micro-printer which is integrated in the tester.

    • Also all the test results saved in the low resistance meter could be uploaded to PC computer and then convert to MS WORD document.



    Features:

    • Rapid test;

    • Result print;

    • Upload data to PC;



    Specifications:

    1 Measuring range 0-1999.9 μΩ Resolution:0.1 μΩ
    2 Measuring current DC 100A, 200A, 400A, 600A for choice
    3 Measuring precision 0.5 %RGD+0.05%FS
    4 Display mode LCD
    5 Data storage Save no more than 100 groups of data
    6 Data connection RS232 computer interface
    7 Rated power supply AC220V
    8 Size 340mm× 280mm × 210mm
    9 Environment temperature -10 ℃~+40 ℃
    10 Relative humidity <80%

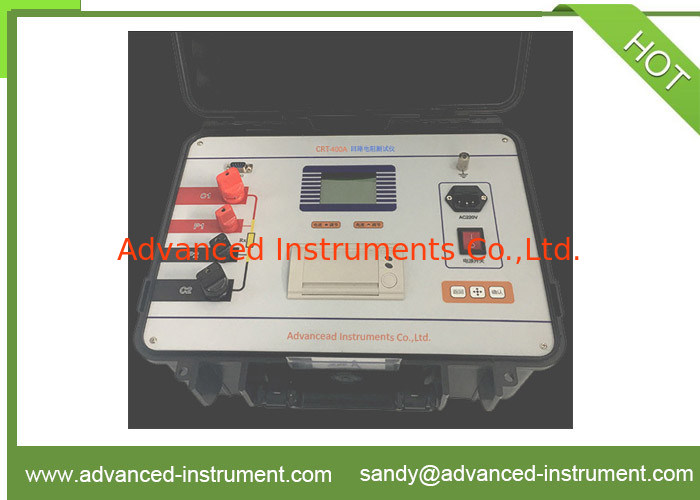

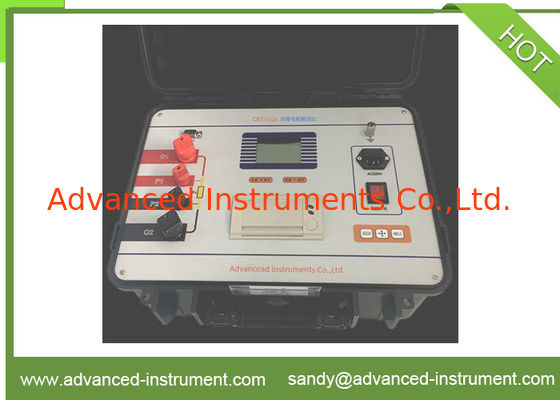

    Picture of 400A Low Contact Loop Resistance Tester

    Loop Resistance Instrument Contact Resistance Test Equipment 100A 200A 400A 600A
