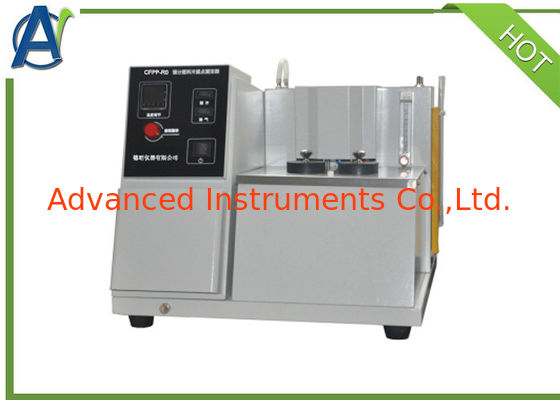

Petroleum Oils Solidifying Point&Cold Filter Plugging Point Testing Equipment

Petroleum Oils Solidifying Point&Cold Filter Plugging Point Testing Equipment

    • Petroleum Oils Solidifying Point&Cold Filter Plugging Point Testing Equipment
    • Petroleum Oils Solidifying Point&Cold Filter Plugging Point Testing Equipment
    • Petroleum Oils Solidifying Point&Cold Filter Plugging Point Testing Equipment

    Detail produk:

    Tempat asal: CINA
    Nama merek: AI
    Sertifikasi: ISO
    Nomor model: SPT-I

    Syarat-syarat pembayaran & pengiriman:

    Kuantitas min Order: 1 set
    Harga: Bisa dinegosiasikan
    Kemasan rincian: Papan keras
    Waktu pengiriman: 20 hari
    Syarat-syarat pembayaran: L/C, T/T, Western Union
    Menyediakan kemampuan: 20 set per bulan
    Hubungi sekarang
    Detil Deskripsi produk
    Standar: GB/T510 Aplikasi: Pengujian Titik Solidifikasi & CFPP
    Konsumsi daya: 1000kw Jaminan: 1 tahun
    Ukuran: 620mm×460mm×355mm Catu Daya: AC（220±10%）, 50Hz
    Ruang kerja: Dua Kisaran Suhu: Ambien hingga -70℃

    Petroleum Oils Solidifying Point&Cold Filter Plugging Point Testing Equipment


    Summary
    This instrument is newly designed and made as per national standard of People's Republic of China GB/T510 Standard Test Method for Solidifying Point of Petroleum Oils.It is suitable to determine solidifying point of petroleum products. It is widely used in oil exploitation companies, petroleum manufacturers, petroleum users, colleges and scientific research institutes.

    I. Main technical features
    1. The material of workbench is stainless steel. It has two cooling baths in one chamber. The two cooling baths are the same in temperature.
    2. It adopts special technology. It is no need to use cooling liquid in cold chamber. The cooling rate is fast and efficiency is high. The temperature in cooling baths is uniform and it can reach -70℃. The precision is ±0.5℃.
    3. The instrument adopts bench structure. The design is simple and easy to use. Operator can do solidifying point test as long as buying this equipment.

    II. Main technical specifications
    1. Power supply: AC(220±10%), 50Hz
    2. Working chamber: Two test baths in one chamber. The temperatures are the same.
    3. Temperature range: Ambient to -70℃
    4. Temperature control accuracy: ±0.5℃
    5. Refrigeration: New-type refrigeration compressor
    6. Ambient temperature: ≤30℃
    7. Relative humidity: ≤85%
    8. Maximum power consumption: 1000W
    9. Dimension: 620mm×460mm×355mm


    III.SPT-I Solidifying Point Testing Eequipment Accessories and Documents List

    No. Name Unit Qty Memo
    1 SPT-I Solidifying Point Testing Equipment Set 1
    2 Thermometer(-80～60)℃ scale mark 1℃ Piece 1
    3 Stopping ring of thermometer(1#) Piece 2
    4 Fuse 10A(Ф5×20) Piece 2
    5 Bath cover Piece 2
    6 Operation manual Piece 1
    7 Temperature control device usage manual Piece 1





    IV,SPT-I Solidifying Point Tester's Reagent and Auxiliary Equipments

    No. Name Specification Quantity Memo
    1 Absolute ethyl alcohol Analytical pure 500ml 3 bottles
