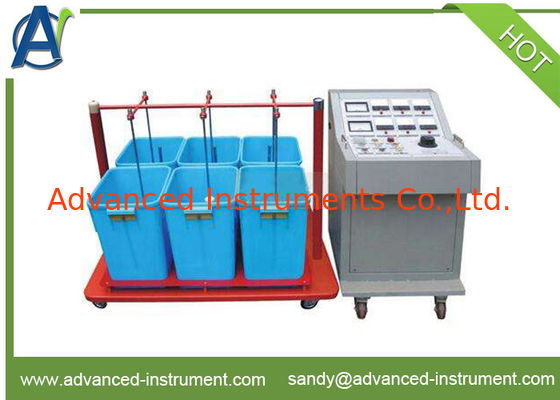

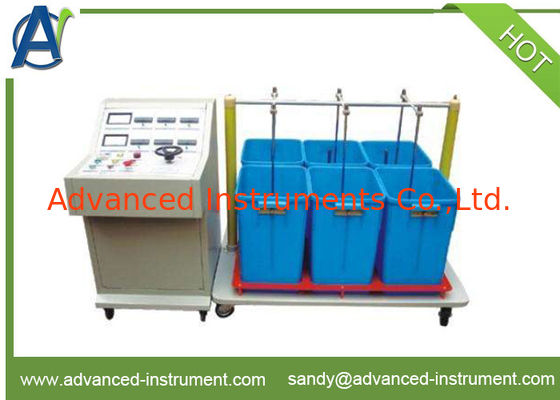

60KV Dielectric Voltage Withstand Test Set for Insulating Boots and Gloves

Detail produk:

Tempat asal:	CINA
Nama merek:	AI
Sertifikasi:	ISO
Nomor model:	IGB

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 set
Harga:	Bisa dinegosiasikan
Kemasan rincian:	Kasus Kayu Lapis
Waktu pengiriman:	15 hari
Syarat-syarat pembayaran:	T/T, Western Union, L/C
Menyediakan kemampuan:	100 set per bulan

Hubungi sekarang

Detil Deskripsi produk

Catu Daya:	0-220V,50HZ	Menampilkan:	Digital
Rentang pengukuran:	0~60KV	Kapasitas:	5kva
Unit uji:	6 PC	Berat:	113KG
Jaminan:	1 tahun	Warna:	Biru dan putih

Dielectric Voltage Withstand Test Set for Insulating Boots and Insulating Gloves

Name: 60KV Dielectric Voltage Withstand Test Set for Insulating Boots and Gloves
Brand: Advanced Instruments Co.,Ltd
SKU: IGB
Availability: InStock

I. Introduction:

This insulating gloves and boots testing equipment is used to test leakage current,insulation aging,power frequency of insulating gloves and boots.It can test 3 pairs for each time and to read leakage current of each pair in order to find which one is unqualified.There are trundles in the bottom which make more convenience for moving.

II.Main Features

1. Input voltage:AC220V 50Hz
2. Output voltage:0~60KV
3. Capacity:5kVA
4. Test units:6 units each time
5. Test data:Display and print voltage data and leakage current data of each unit
6. Overcurrent protection:Overvoltage protection；User-defined time setting,display voltage data and leakage current data
7. Accuracy:Voltage ±2%(±3 digits) Current±2%(±3 digits)
8. Size:test car size:1000*770*820mm; weight:28kg

Test bench size:660*560*940mm; weight:50kg

HV test transformer size:300*240*670mm; weight:35kg

III. Package List
