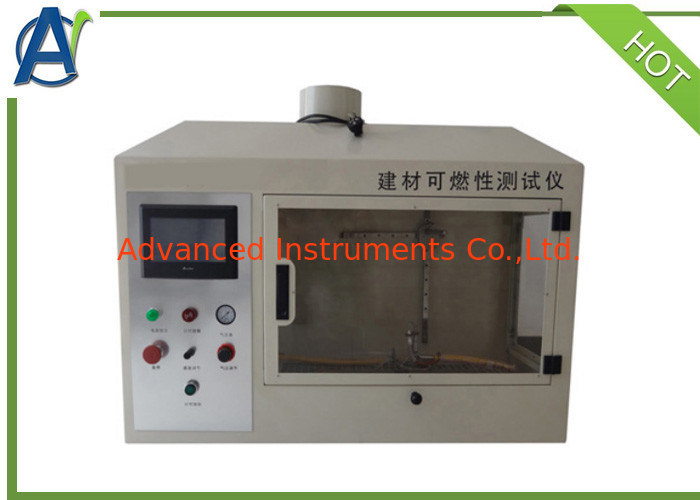

Ignitability and Single Flame Source Test Equipment

Introduction:
This ignitability test equipment is designed according to ISO11925-2, it is used to test building material under conditions in the absence of external radiation to direct impact of vertically placed samples with a small flame to determine the flammability of building products.


Standards:

• EN ISO 11925-2:Reaction to fire tests - Ignitability ofbuilding products subjected to direct impingement of flame - Part 2: Single-flame source test. Mainfield of application
• DIN 53438:Testing of combustible materials - response to ignition by a small flame- edge ignition
• DIN 4102-1:Fire test to building material

Structure
1, Box paint treatment, beautiful;
2, The combustion chamber dimensions: length 700mm X width 400mm X high 600
3, The flame height can be adjusted, automatic ignition;
4, The flame burning application time and hold time can adjust from 0 to 99 minutes 99 seconds;
5, Combustion angle: 0 ° (vertical), 45 °
6, The burner can be moved in a horizontal direction;
7, Glass doors for easy observation test;
8, All fixtures are made of stainless steel; beautiful and corrosion;
9, This Ignitability and Single Flame Source Test Equipment is equipped with two types of stainless steel sample holder. With flame height measuring;
10, The equipment has high degree of test automation, test data accurate, easy to operate.


Control System:
• This ignitability test equipment is controlled by Programmable Logic Controller (PLC):
• Automatic timing, automatic detection of the flame, automatic ignition, ignition abnormal protection;
• This single flame source test equipment has LCD touch screen display;
• real-time monitoring of experimental data, queries six samples of experimental data, query alarm content.
