ASTM D1831 Lubricating Grease Roll Stability Test Apparatus with 2 Test Units

ASTM D1831 Lubricating Grease Roll Stability Test Apparatus with 2 Test Units

    • ASTM D1831 Lubricating Grease Roll Stability Test Apparatus with 2 Test Units
    • ASTM D1831 Lubricating Grease Roll Stability Test Apparatus with 2 Test Units
    • ASTM D1831 Lubricating Grease Roll Stability Test Apparatus with 2 Test Units
    • ASTM D1831 Lubricating Grease Roll Stability Test Apparatus with 2 Test Units
    • ASTM D1831 Lubricating Grease Roll Stability Test Apparatus with 2 Test Units

    Detail produk:

    Tempat asal: CINA
    Nama merek: AI
    Sertifikasi: ISO
    Nomor model: AIC-1831

    Syarat-syarat pembayaran & pengiriman:

    Kuantitas min Order: 1 set
    Harga: Bisa dinegosiasikan
    Kemasan rincian: Papan keras
    Waktu pengiriman: 20 hari
    Syarat-syarat pembayaran: L/C, T/T, Western Union
    Menyediakan kemampuan: 20 set per bulan
    Hubungi sekarang
    Detil Deskripsi produk
    Catu Daya: AC220V /50Hz Kisaran Pengontrolan Suhu: 21 ～ 38 ℃
    Unit kerja: Dua Kekuatan total: 1000kw
    Standar uji: ASTM D1831, SH/T0122 Kecepatan motor berputar: 155 ～ 180r/mnt
    Jaminan: 1 tahun kata kunci: alat uji stabilitas gulung



    ASTM D1831 Lubricating Grease Roll Stability Test Apparatus





    Introduction

    When operating this apparatus,using certain quantity sample working on roll test machine under room temperature,after 2 hours,measure the penetration of lubricating grease before and after test.This apparatus is suitable to determine the changes in the consistency of lubricating grease when worked in the roll stability test apparatus,and judge the mechanical shear stability of lubricating grease.





    Characteristic

    1.Stainless steel roller Φ90×180mm 5kg

    2..Idle pulley has locating ring to control the normal working of roller

    3.Driving motor is installed to keep rotating speed 155～180r/min

    4.Roller is drove by belt

    5.Mic-computer temperature controller,digital display,accuracy ±5℃,Pt 100 sensor

    6.Digital timer can record working time and it has buzzer siren

    7.It can test two rollers simultaneously

    8.There is a hole of thermometer on the cover,and temperature can be corrected by it.





    Technical specifications

    1 Applicable standards ASTM D1831, SH/T0122
    2 Power supply AC220V /50HZ
    3

    Rotating speed of motor

    		 155～180r/min
    4 Heating mode heater band
    5 Total power 1000W
    6 Temperature controlling range 21～38℃
    7 Working units two
    8 Timing Digital timer

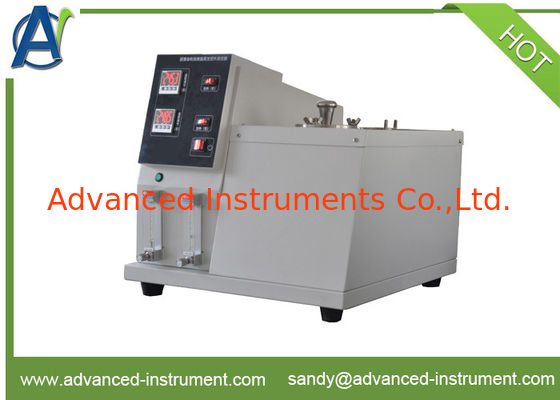

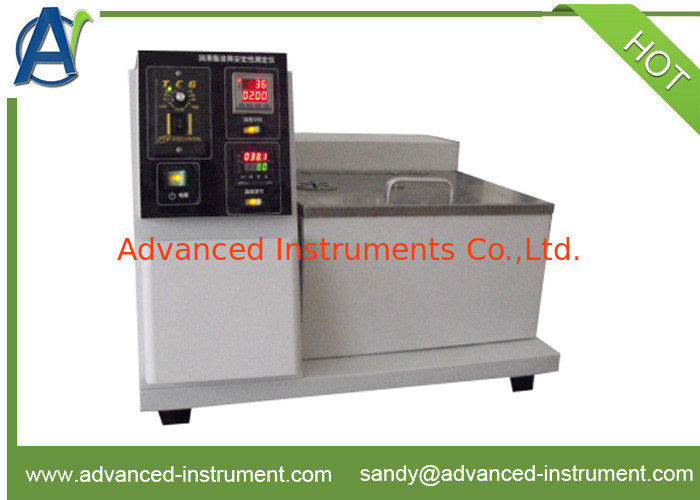

    Photo of ASTM D1831 Lubricating Grease Roll Stability Test Apparatus

    ASTM D1831 Lubricating Grease Roll Stability Test Apparatus with 2 Test Units
