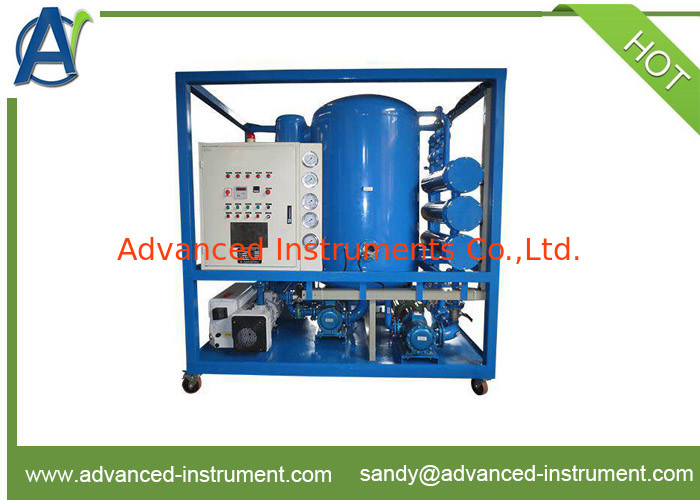

4000L/H Double Stage High Vacuum Oil Purifier for Transformer Oil Purification

4000L/H Double Stage High Vacuum Oil Purifier for Transformer Oil Purification

    • 4000L/H Double Stage High Vacuum Oil Purifier for Transformer Oil Purification
    • 4000L/H Double Stage High Vacuum Oil Purifier for Transformer Oil Purification
    • 4000L/H Double Stage High Vacuum Oil Purifier for Transformer Oil Purification
    • 4000L/H Double Stage High Vacuum Oil Purifier for Transformer Oil Purification
    • 4000L/H Double Stage High Vacuum Oil Purifier for Transformer Oil Purification

    Detail produk:

    Tempat asal: CINA
    Nama merek: AI
    Sertifikasi: ISO
    Nomor model: VTD-4

    Syarat-syarat pembayaran & pengiriman:

    Kuantitas min Order: 1 set
    Harga: Bisa dinegosiasikan
    Kemasan rincian: Kasing kayu
    Waktu pengiriman: 30 Hari
    Syarat-syarat pembayaran: D/P, T/T, Western Union
    Menyediakan kemampuan: 100 set per bulan
    Hubungi sekarang
    Detil Deskripsi produk
    Fungsi: memurnikan minyak trafo bekas Kapasitas nominal: 4000L/H.
    kekosongan kerja: -0,06～0,099 MPa Catu Daya: 50Hz,380V,3 kabel fase 4
    Kekuatan total: 52KW Operasi berisik: ≤80db (a)

    VTD-4 Double Stage High Vacuum Oil Purifier for Transformer Oil

                                         4000L/H Double Stage High Vacuum Oil Purifier for Transformer Oil Purification





    ​I.Application:

    This transformer oil purifier is mainly used to remove gas,water and impurities in insulation oil and improve transformer oil's dielectric strength.It can also be used for pumping vacuum for transformer,vacuum oil injection and thermal oil circulation.



    II.Technical specifications

    • Model:VTD-4 Transformer oil purifier
    • Nominal capacity:4000L/h
    • Working vacuity:-0.06～0.099 MPa
    • Limit vacuity:≤5-8Pa
    • Working oil temperature:45～65℃
    • Working pressure:≤0.5Mpa
    • Power supply:50Hz,380V,3 phase 4 wire
    • Heating power:48Kw
    • Total power:52kw
    • Head:≥15m
    • Operation noisy:≤80dB(A)
    • Diameter of oil inlet/outlet:42/42mm
    • Continuous operation time:≥200 hours
    • Average faultless working time:≥5000 hours



    III.Index of clean transformer oil

    1 Water content ≤10ppm
    2 Gas content ≤0.5%(by volume)
    3 Filter accuracy ≤1µm
    4 Breakdown voltage ≥70KV(Ball)
    5 Ethane content Null
