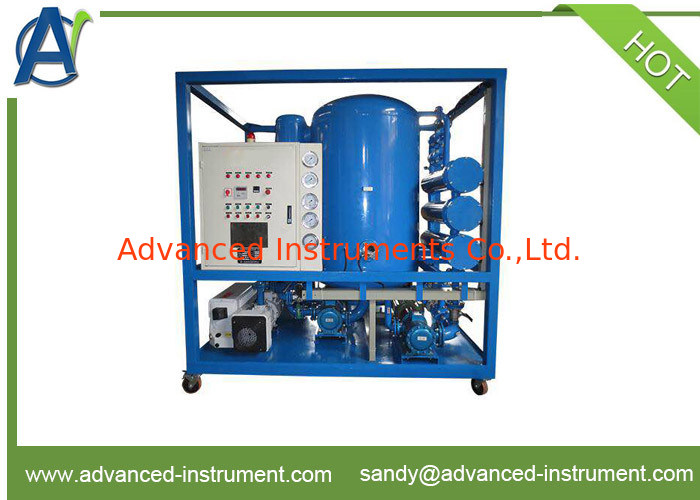

VTD Double Stage High Vacuum Oil Filtration Plant for Transformer Oil

VTD Double Stage High Vacuum Oil Filtration Plant for Transformer Oil

VTD Double Stage High Vacuum Oil Filtration Plant for Transformer Oil

Detail produk:

Tempat asal: CINA
Nama merek: AI
Sertifikasi: ISO
Nomor model: VTD

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order: 1 set
Harga: Bisa dinegosiasikan
Kemasan rincian: Kasing kayu
Waktu pengiriman: 30 Hari
Syarat-syarat pembayaran: D/P, T/T, Western Union
Menyediakan kemampuan: 100 set per bulan
Hubungi sekarang
Detil Deskripsi produk
Fungsi: menyaring oli trafo bekas Kapasitas nominal: 1800L/jam-18000L/jam
kekosongan kerja: -0,06～0,099 MPa Catu Daya: 50Hz,380V,3 kabel fase 4
Kekuatan total: 52KW Operasi berisik: ≤80db (a)
Warna: Biru atau disesuaikan Jaminan: 1 tahun

VTD Double Stage High Vacuum Oil Filtration Plant

​I.Application:

This transformer oil filtration plant is mainly used to remove gas,water and impurities in insulation oil and improve transformer oil's dielectric strength.It can also be used for pumping vacuum for transformer,vacuum oil injection and thermal oil circulation.



II.Technical specifications

  • Model:VTD Transformer oil filtration plant
  • Nominal capacity:4000L/h or other flow rate
  • Working vacuity:-0.06～0.099 MPa
  • Limit vacuity:≤5-8Pa
  • Working oil temperature:45～65℃
  • Working pressure:≤0.5Mpa
  • Power supply:50Hz,380V,3 phase 4 wire
  • Heating power:48Kw
  • Total power:52kw
  • Head:≥15m
  • Operation noisy:≤80dB(A)
  • Diameter of oil inlet/outlet:42/42mm
  • Continuous operation time:≥200 hours
  • Average faultless working time:≥5000 hours



III.Index of clean transformer oil

1 Water content ≤10ppm
2 Gas content ≤0.5%(by volume)
3 Filter accuracy ≤1µm
4 Breakdown voltage ≥70KV(Ball)
5 Ethane content Null





IV.Optation Parts for transformer oil purifier

1.Aluminum case

2.Online water detector(Viasala)
