Electrician Instrument Automatic Transformer Tangent Incremental Power Factor Tester

Electrician Instrument Automatic Transformer Tangent Incremental Power Factor Tester

Electrician Instrument Automatic Transformer Tangent Incremental Power Factor Tester

Detail produk:

Tempat asal: CINA
Nama merek: AI
Sertifikasi: ISO
Nomor model: TDT

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order: 1 set
Harga: Bisa dinegosiasikan
Kemasan rincian: Karton
Waktu pengiriman: 15 hari kerja
Syarat-syarat pembayaran: Western Union, T/T, L/C
Menyediakan kemampuan: 100000 set per bulan
Hubungi sekarang
Detil Deskripsi produk
Catu Daya: AC 220V±10% Menampilkan: LCD
kata kunci: Penganalisis Tangen Delta, Penguji Faktor Daya output tinggi: 0.5kV ~ 10kv
Arus maksimum: 200mA Kapasitas: 2000va
Ukuran: 350*270*270mm Berat: 28kg



Electrician Instrument Automatic Transformer Tangent Incremental Power Factor Tester



I.Introduction:

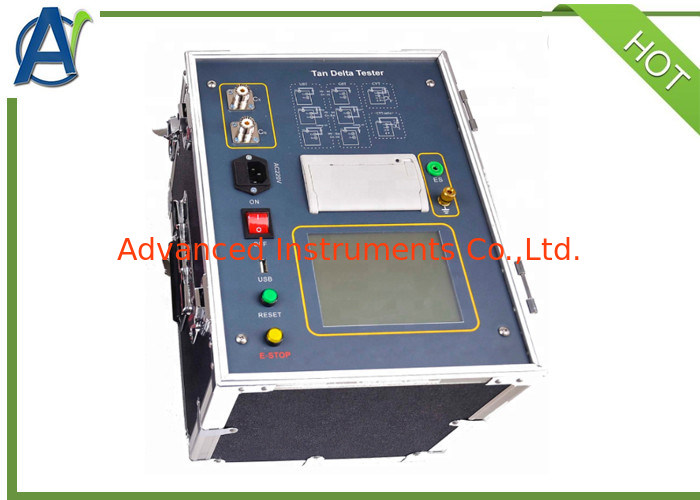

This tangent delta power factor tester is a high-precision instrument, which can be applied to automatically measure electrical loss tangent ( ) and capacitance of all kinds of high voltage electrical equipments on the spot of power plants, substations,laboratory, etc. The instrument is an integrated structure with a dielectric loss test bridge, a variable frequency power supply, a step-up transformer and a SF6 high stability standard capacitor.




II.Specifications:

1 Use conditions -15℃∽40℃ RH＜80%
2 Anti-interference Frequency conversion
3 Power AC 220V±10% Allowable generator
4 High output 0.5KV∽10KV(rated voltage:10KV) Every 0.1kV
0.5KV∽12KV(rated voltage:12KV)
Precision 2%
Maximum current 200mA (rated voltage:10KV)
167mA (rated voltage:12KV)
Capacity 2000VA
5 Self-excited power AC 0V∽50V/15A 45HZ/55HZ 47.5HZ/52.5HZ
55HZ/65HZ 57.5HZ/62.5HZ
Automatic double frequency
6 Resolving power tgδ: 0.001% Cx: 0.001pF
7 Precision △tgδ:±(Reading*1.0%+0.040%)
△C x :±(Reading*1.0%+1.00PF)
8 measuring range tgδ Unlimited
C x 15pF ＜ Cx ＜ 300nF
rated voltage:10KV 10KV Cx ＜ 60 nF
5KV Cx ＜ 150 nF
1KV Cx ＜ 300 nF
rated voltage:12KV 12KV Cx ＜ 30 nF
5KV Cx ＜ 150 nF
1KV Cx ＜ 300 nF
CVT test Cx ＜ 300 nF
9 CVT range 10∽10000
accuracy 0.1%
Resolving power 0.01
10 Exterior dimension 350(L)×270(W)×270(H)
11 Memory size The 200 groups supports U disk data storage
12 Weight 28 Kg
