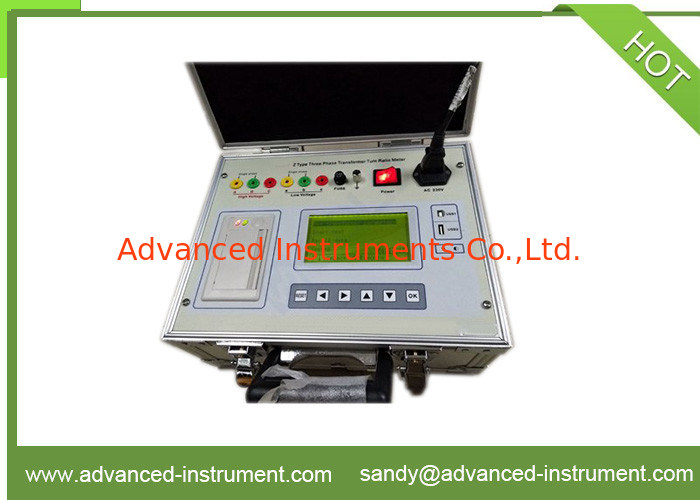

Single-Phase Or Three-Phase Automatic Transformer Turns Ratio Table TTR Table

Single-Phase Or Three-Phase Automatic Transformer Turns Ratio Table TTR Table

    • Single-Phase Or Three-Phase Automatic Transformer Turns Ratio Table TTR Table
    • Single-Phase Or Three-Phase Automatic Transformer Turns Ratio Table TTR Table
    • Single-Phase Or Three-Phase Automatic Transformer Turns Ratio Table TTR Table

    Detail produk:

    Tempat asal: CINA
    Nama merek: AI
    Sertifikasi: ISO
    Nomor model: TTR

    Syarat-syarat pembayaran & pengiriman:

    Kuantitas min Order: 1 set
    Harga: Bisa dinegosiasikan
    Kemasan rincian: Kasus Kayu Lapis
    Waktu pengiriman: 15 hari
    Syarat-syarat pembayaran: Western Union, T/T, L/C
    Menyediakan kemampuan: 100000 set per bulan
    Hubungi sekarang
    Detil Deskripsi produk
    Catu Daya: AC220V±10%, 50Hz/60Hz Menampilkan: LCD
    Rentang pengukuran: 1-10.000 Kelompok pengukur: 1-12
    Jaminan: 1 tahun kata kunci: Pengukur Rasio Putaran Transformator, Pengukur TTR

    Single Three Phase Transformer Turns Ratio Tester TTR Meter



    I. Introduction:

    • This transformer turns ratio tester can test voltage ratio for three or singe phase transformer

    • The group vector measurement for three phase transformer.

    • The polarity measurement for single phase transformer or CT/PT

    • Voltage ratio error calculation

    • Current transformer ratio measurement

    • Excitation current measurement in ratio testing

    • Reproduction the AC test voltage from power source to reduce the effects of bad power source

    • Save the test results in the memory internal the TTR meter

    • This turns ratio meter can print the test results by micro build-in printer

    • Reverse connection detect unit to prevent the high voltage injected to operator

    • Over current protection unit integrated in software and hardware

    • Upload the test results to PC by RS232 and make word report by software



    II. Specifications:

    1 Product Name Single and Three Phase Transformer Turns Ratio TTR Tester
    2 Ratio measurement range 1-10000
    3 Group measurement 1-12
    4 Phase measurement error 1 degree
    5 Ratio measurement error 1-2000 ± 0.2%RDG 2000-10000 ± 0.5%RDG
    6 Test voltage 0~80V, frequency 50Hz
    7 Power supply AC220V ± 10%, 50Hz/60Hz
    8 Environment temperature 0-50°C
    9 Humidity ≤85%R
    10 Dimension 58*45*36CM
    11 Weight 22Kg

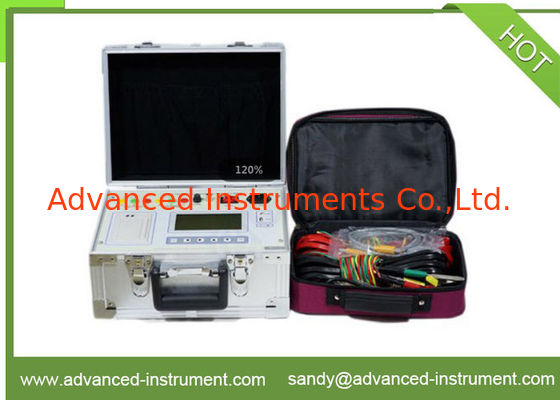

    Spare Package of Single or Three Phase Automatic Transformer Turns Ratio Meter TTR Meter

    Single-Phase Or Three-Phase Automatic Transformer Turns Ratio Table TTR TableSingle-Phase Or Three-Phase Automatic Transformer Turns Ratio Table TTR Table
