Non-combustibility tester EN ISO 1182, IMO FTPC Part 1, BS 476-4, EN 13501

Non-combustibility tester EN ISO 1182, IMO FTPC Part 1, BS 476-4, EN 13501

    • Non-combustibility tester EN ISO 1182, IMO FTPC Part 1, BS 476-4, EN 13501
    • Non-combustibility tester EN ISO 1182, IMO FTPC Part 1, BS 476-4, EN 13501
    • Non-combustibility tester EN ISO 1182, IMO FTPC Part 1, BS 476-4, EN 13501
    • Non-combustibility tester EN ISO 1182, IMO FTPC Part 1, BS 476-4, EN 13501

    Detail produk:

    Tempat asal: CINA
    Nama merek: AI
    Sertifikasi: ISO
    Nomor model: NCF

    Syarat-syarat pembayaran & pengiriman:

    Kuantitas min Order: 1 set
    Harga: Bisa dinegosiasikan
    Kemasan rincian: Kasus Kayu Lapis
    Waktu pengiriman: 60 hari
    Syarat-syarat pembayaran: Western Union, T/T, L/C
    Hubungi sekarang
    Detil Deskripsi produk
    Standar uji: EN ISO 1182,IMO FTPC Bagian 1,BS 476-4,EN 13501 Ukuran tungku: 400 mm (L) x 400 mm (L) x 1200 mm (T)
    Ukuran unit Kontrol: 530 mm (L) × 270 mm (L) × 280 mm (T) Berat: 65kg
    Operasi: Dikendalikan Oleh PC Jaminan: 1 tahun

    Non-Combustibility Tester

    INTRODUCTION:The EN ISO 1182 Non-combustibility test is one of the series of Euroclass test standards. This test specifies a procedure for determining whether or not a material will contribute directly to fire development and is relevant to classification of all building products (including floorings) into classes A1 and A2.



    FEATURE:

    • Non-Combustibility Furnace measures incombustibility and combustibility of uniform building material and non-uniform building material of actual element.

    • The evaluations (results) are rising temperature in the furnace, basic mass loss and ignition of specimen.

    • Single Zone Furnace operable at up to 900 ℃ with the Kanthal Ribbon Heater.

    • 750±5℃ temperature automatically control by PID and Power controller.

    • Provided with stabilized voltage supply for more quick temperature stabilization.

    • Equipped with 3 thermocouples, for temperature in furnace, specimen center, and specimen surface respectively.

    • 360 degree rotatable and height adjustable thermocouple scanning device.

    • Inner furnace thermocouple device to calibrate the temperature of furnace.

    • Testing results include Mass Loss(g) and Rate(%) ,Ignition Time(s) and Sustained Flaming(s) ,Initial & Maximum Furnace Temperature(℃) ,Final Furnace Temperature(℃) ,Maximum Specimen Center Temperature(℃) ,Final Specimen Center Temperature(℃) ,Furnace Temperature Rise(℃) ,Specimen Center & Surface Temperature Rise(℃).

    Installation requirements

    Electrical 110V AC 60Hz / 230V AC 50Hz, 10A
    Ambient Temperature 10°C to 35°C
    Dimensions 400 mm (W) x 400 mm (D) x 1200 mm (H)
    Control Unit 530 mm (W) × 270 mm (D) × 280 mm (H)
    Weight 65KG
    Applicable standards EN ISO 1182,IMO FTPC Part 1,BS 476-4,EN 13501

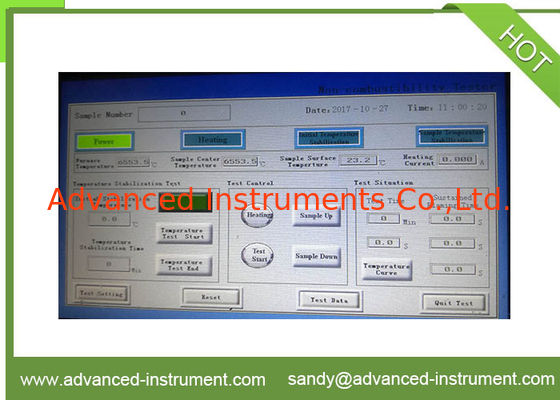

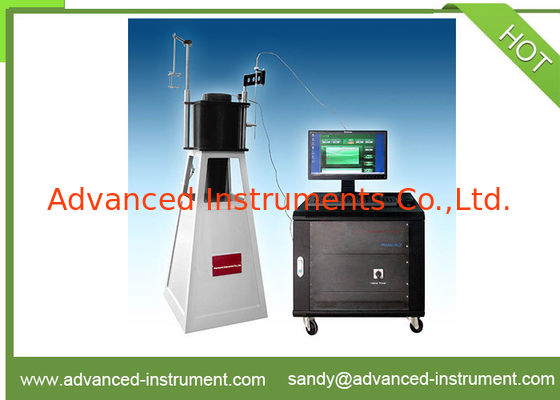

    Photos of Non-Combustibility Tester EN ISO 1182

    Non-combustibility tester EN ISO 1182, IMO FTPC Part 1, BS 476-4, EN 13501
