Name: Corrosive Sulfur Test Apparatus for Insulating Oils by ASTM D1275 and IEC 62535
Brand: Advanced Instruments Co.,Ltd
SKU: AIC-1275
Availability: InStock

Rumah Produk Pengujian Minyak Isolasi atau Transformator

Corrosive Sulfur Test Apparatus for Insulating Oils by ASTM D1275 and IEC 62535

Detail produk:

Tempat asal:	CINA
Nama merek:	AI
Sertifikasi:	ISO
Nomor model:	AIC-1275

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 set
Harga:	Bisa dinegosiasikan
Kemasan rincian:	Papan keras
Waktu pengiriman:	35 hari
Syarat-syarat pembayaran:	Western Union, T/T, L/C
Menyediakan kemampuan:	50 set per bulan

Hubungi sekarang

Detil Deskripsi produk

Standar uji:	ASTM D1275, IEC 62535	Suhu kerja.:	Ambien~150ºC
Kontrol suhu:	PID yang diimpor	Catu Daya:	AC220V ± 10%, 50Hz
Waktu:	Pengatur waktu digital	Strip tembaga standar:	Kemurnian 99,9%, ketebalan 0,125 ~ 0,250mm
Ukuran:	600×600×650mm3	Berat:	31kg
Kekuatan total:	1200W	Aplikasi:	pengujian minyak isolasi

Introduction

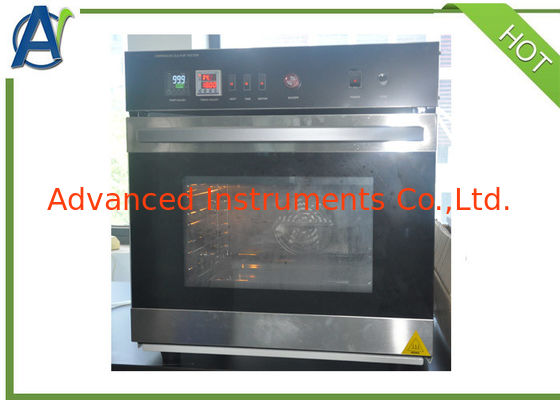

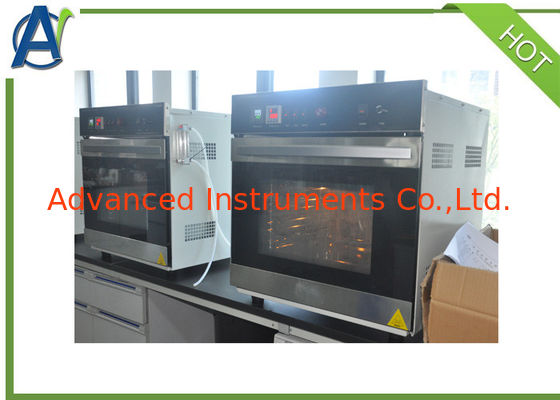

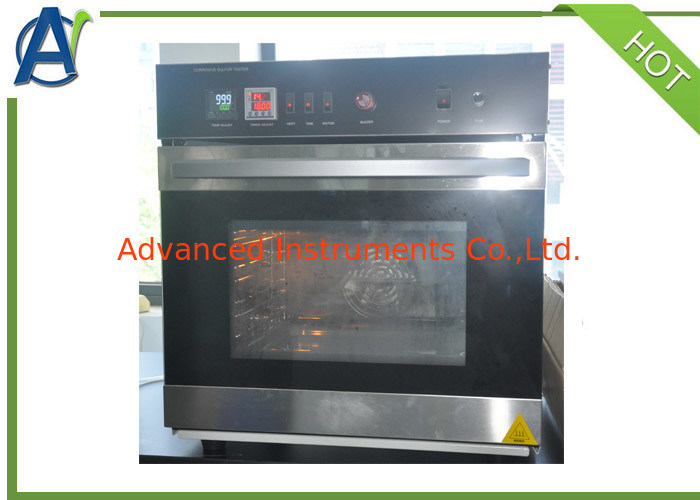

This Corrosive Sulfur Apparatus is used to determine corrosive sulfur compounds (both inorganic and organic) in electrical insulating liquids.
New and in-service insulating liquids may contain elemental sulfur or sulfur compounds, or both, that cause corrosion under certain conditions of use.

This Corrosive Sulfur Apparatus is designed to detect the presence of, or the propensity to form, free (elemental) sulfur and corrosive sulfur compounds by subjecting copper or silver to contact with an insulating liquid under prescribed conditions.

I.Main features

1. Stainless steel heating box with transparent observation window for easy operation, and a hole for inserting a thermometer at the top
2. The surface of the instrument is treated with electrostatic spray molding, which is corrosive and easy to clean
3. Digital display timer, with an accuracy deviation of no more than 2min per hour, recording the test time, and equipped with a time alarm.

Technical Specifications

1	Applicable standards	SH/T0804,ASTM D1275,IEC 62535
2	Temperature controlling method	PT100 temperature sensor,digital display
3	Temperature controlling rang	room temperature~150
4	Temperature controlling accuracy	within ±1ºC
5	Timing method	digital timer
6	Total power	1.5KW
7	Standard siliver test strip	cold rolled 20×40×0.5mm3,purity 99.99
8	Power supply	AC220V/50Hz
9	Overall dimension	600600650mm3
10	Weight	31KG

Corrosive Sulfur Test Apparatus for Insulating Oils by ASTM D1275 and IEC 62535
