3m cubic smoke density fire detector for cables to BS 6853

Introduction

3 Metre Cube is used for measuring the emission when the cable or optical cable is placed horizontally under the definite fire condition. The equipment comprises a cubic enclosure and a photometric system.
The specified standard fire source (ethanol 90±1%, methanol 4±1% and distilled water 6±1%) 1L±0.01L is burned.


Standards:

IEC 61034 - 1 & 2 Measurement of Smoke density of cables burning under defined condition.
BS 6853 Code of practice for fire precautions in design and construction of passenger carrying trains.

Feature:

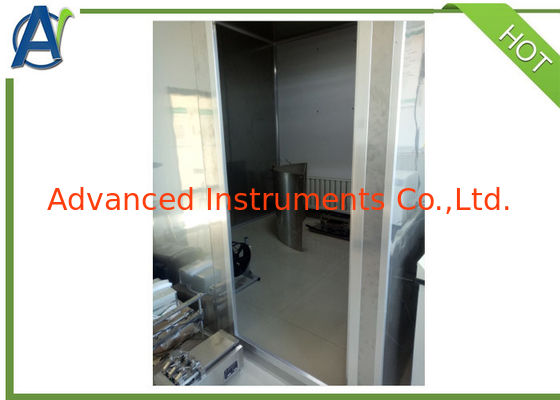

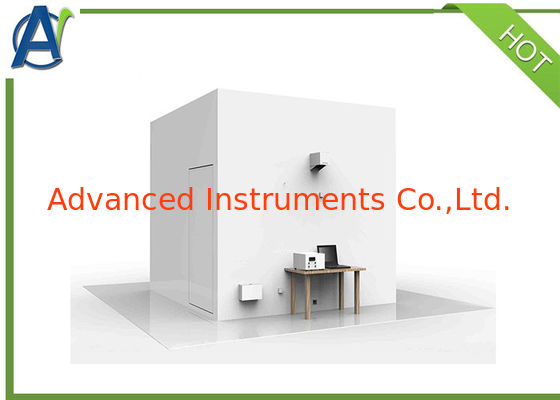

• Chamber internal size is 3,000mm(W) × 3,000mm(D) × 3,000mm(H).

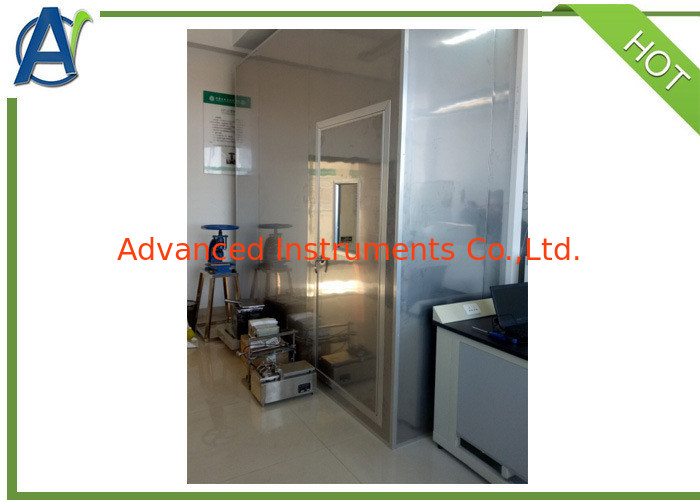

• Its configured with a door with test glass windows and in both faces of the opposite side there is a sealed transparent window (minimum 100mmX100mm) .

• 3 Metre Cube adopts support system to allow separate fitting of Light Source and Photocell in the outer wall.

• The Light Source is Dedolight Classic Series Tungsten with 100W.

• The Dedolight Tungsten power supply is 12V DC.

• Velocity of light : 2000 lm~3000 lm, and color temperature : 2800K~3200K.

• The Receptor Photocell is silicone type and has a spectrum reaction conform to Photopic Observer (similar to a human eye) of the International Commission on Illumination (CIE).

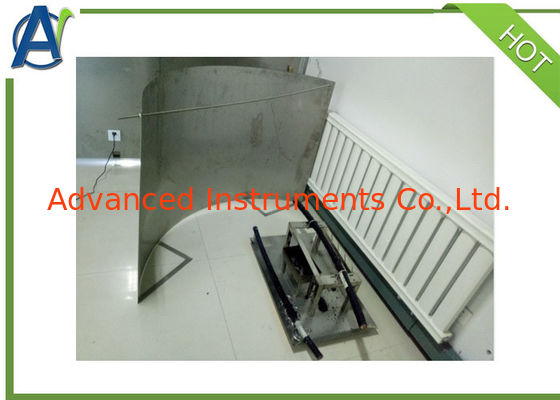

• 3 Metre Cube is supplied with customised extraction facilities and all instrumentation, fans, stands and sample mounting frames.

• Software shows testing results including the inner chamber temperature, light transmition etc.
