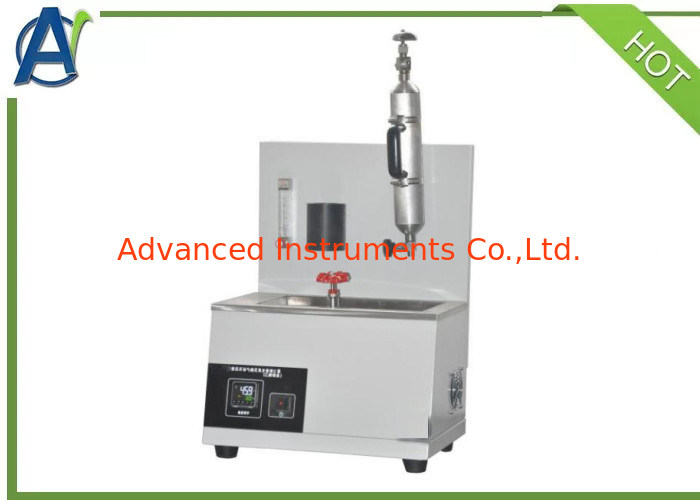

ASTM D2420 Liquefied Petroleum Gas Hydrogen Sulfide Test Apparatus

ASTM D2420 Liquefied Petroleum Gas Hydrogen Sulfide Test Apparatus

ASTM D2420 Liquefied Petroleum Gas Hydrogen Sulfide Test Apparatus

Detail produk:

Tempat asal: CINA
Nama merek: AI
Sertifikasi: ISO
Nomor model: AIC-2420

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order: 1
Harga: Bisa dinegosiasikan
Kemasan rincian: Kasus Kayu Lapis
Syarat-syarat pembayaran: L/C, D/A, Serikat Barat, T/T
Menyediakan kemampuan: 20 set/bulan
Hubungi sekarang
Detil Deskripsi produk
Standar uji: ASTM D2420、SH/T0125 Metode Pemanasan: Pemanas
Metode kontrol suhu: Termostat PID Digital Catu Daya: AC220V/ 50Hz
Kekuatan total: 1000W Ukuran: 440*310*600mm
Berat: 20kg Gas: mandi penguapan air panas
Sampler: 500ml kata kunci: Penguji Hidrogen Sulfida

Introduction
This ASTM D2420 LPG Hydrogen Sulfide Tester is used to detect the presence or absence of hydrogen sulfide in liquefied petroleum gas. The lower limit of detection of hydrogen sulfide is 4mg/m3.If methyl mercaptan is present on the lead acetate test strip, it will produce a short-term yellow stain, but it will disappear completely in less than 5 minutes.Other sulfides in liquefied petroleum gas do not interfere with this test.

I. Main features
1.The test glass tube meets the requirements of the standard, with a glass hook inside.
2. LPG Hydrogen Sulfide Tester provides 500ml stainless steel sampler.
3.The gas passes through the thermal evaporation bath and the needle valve adjusts the flow.
4.LPG Hydrogen Sulfide Tester adopts imported Omron PID temperature controller, digital continuous display temperature, accuracy 0.1ºC.



II.Technical specifications
Applicable Standard ASTM D2420, SH/T0125
Heating mode Electric heating tube
Temperature controlling mode Digital PID thermostat
Flow control Needle valve adjustment, flow meter displays flow
Power supply AC220V/ 50HZ
Total power 1000W
Dimension 440*310*600mm
Weight 20KG



III.Pacakge list
No. Name Quantity Unit
1 LPG Hydrogen Sulfide Test Instrument 1 Set
2 Fuse 20A 4 PC
3 Sampling cylinder 500ml 1 PC
4 Glass hook 1 PC
5 Fuse 20A 4 PC
6 Rubber stopper 10# 1 PC
7 Glass cylinder 1 Set
8 Watch glass 1 PC
9 Glass connecting pipe 1 Root
10 Breathing pipe 1 PC
11 Test strip 1 Box
12 User manual 1 Copy
