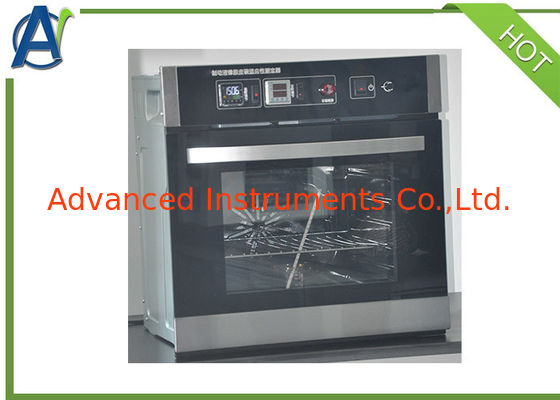

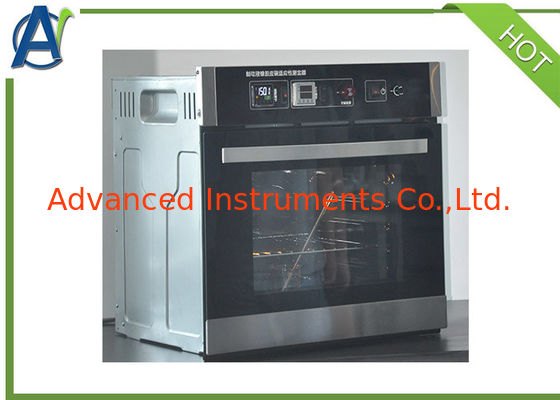

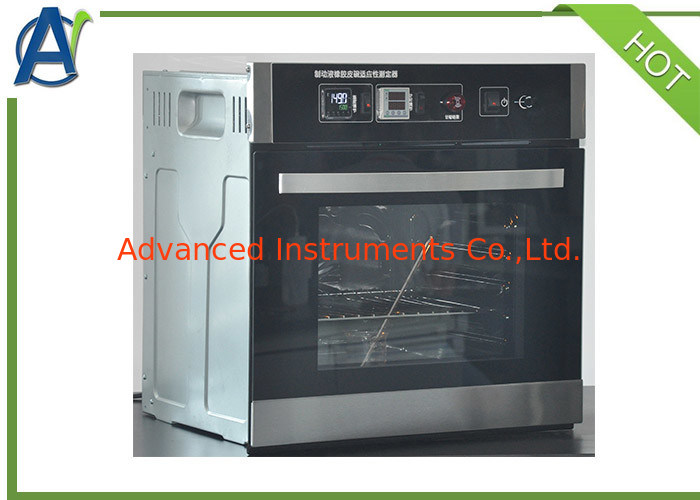

IP 278 Seal Compatibility Index Test Equipment for Petroleum Oils

IP 278 Seal Compatibility Index Test Equipment for Petroleum Oils

    • IP 278 Seal Compatibility Index Test Equipment for Petroleum Oils
    • IP 278 Seal Compatibility Index Test Equipment for Petroleum Oils
    • IP 278 Seal Compatibility Index Test Equipment for Petroleum Oils
    • IP 278 Seal Compatibility Index Test Equipment for Petroleum Oils

    Detail produk:

    Tempat asal: CINA
    Nama merek: AI
    Sertifikasi: ISO
    Nomor model: AIC-278

    Syarat-syarat pembayaran & pengiriman:

    Kuantitas min Order: 1 set
    Harga: Bisa dinegosiasikan
    Kemasan rincian: Papan keras
    Waktu pengiriman: 30 Hari
    Syarat-syarat pembayaran: L/C, T/T, Western Union
    Menyediakan kemampuan: 20 set per bulan
    Hubungi sekarang
    Detil Deskripsi produk
    Catu Daya: AC220V /50Hz Metode Pemanasan: Tabung pemanas listrik baja tahan karat
    Standar uji: IP 278 Metode kontrol suhu: Omron
    Kisaran kontrol suhu: RT~100 ºC Dimensi: 600*600*650mm3
    Tegangan kerja: 10KV±2% Berat: 40kg
    Kekuatan total: 1200W Layanan OEM: Tersedia

    Summary
    This Seal Compatibility Index Test Equipment is suitable for the determination of various petroleum products, but it is not suitable for the determination of water containing petroleum products.
    Measure the inner diameter of the rubber ring with a conical gauge, then soak the rubber ring in the sample at a certain temperature for 24 hours, take it out for cooling, and measure the change of the rubber inner diameter with a conical gauge.

    I. Main technical features
    1.The air guide cooling system automatically starts to dissipate heat when the surface temperature of the instrument is too high;
    2.The     Seal Compatibility Index Test Equipment adopts Novel V-shaped door opening mode, fully transparent high-temperature resistant glass door;
    3.Enamel liner is corrosion-resistant and easy to clean;
    4.The box is equipped with fan circulation and lighting devices;
    5.Standard alloy steel gauge is provided with this Seal Compatibility Index Tester;
    6.Imported Omron PID temperature controller, digital display temperature, accuracy 0.1 ºC
    7.Working range: room temperature ~ 100 ° C ± 1 ° C;
    8.The     Seal Compatibility Index Test Equipment has over temperature safety protection.

    II. Main technical specifications
    1 Applicable standard SH/T 0305,IP 278
    2 Heating method Stainless steel electrical heating tube
    3 Temperature control method Imported PID temperature controller
    4 Temperature control range RT~100 ºC
    5 Temperature control accuracy ±1 ºC
    6 Working voltage 10KV±2%
    7 Dimension 600*600*650mm3
    8 Weight 40KG
    9 Total power 1200W
    10 Power supply AC 220V±10%, 50 Hz



    IP 278 Seal Compatibility Index Test Equipment for Petroleum Oils
