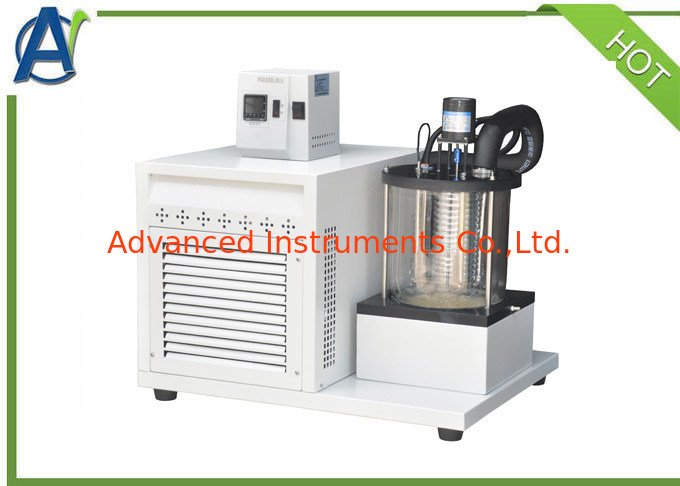

DIN 51351 Floc Point Test Apparatus for Refrigerator Oils by Pressure Tube Method

DIN 51351 Floc Point Test Apparatus for Refrigerator Oils by Pressure Tube Method

    • DIN 51351 Floc Point Test Apparatus for Refrigerator Oils by Pressure Tube Method
    • DIN 51351 Floc Point Test Apparatus for Refrigerator Oils by Pressure Tube Method
    • DIN 51351 Floc Point Test Apparatus for Refrigerator Oils by Pressure Tube Method
    • DIN 51351 Floc Point Test Apparatus for Refrigerator Oils by Pressure Tube Method

    Detail produk:

    Tempat asal: CINA
    Nama merek: AI
    Sertifikasi: ISO
    Nomor model: AIC-51351

    Syarat-syarat pembayaran & pengiriman:

    Kuantitas min Order: 1 set
    Harga: Bisa dinegosiasikan
    Kemasan rincian: Papan keras
    Waktu pengiriman: 30 Hari
    Syarat-syarat pembayaran: L/C, T/T, Western Union
    Menyediakan kemampuan: 20 set per bulan
    Hubungi sekarang
    Detil Deskripsi produk
    Catu Daya: AC220V /50Hz Metode pendinginan: kompresor ganda
    Standar uji: DIN 51351 Metode kontrol suhu: Omron
    Kisaran kontrol suhu: RT~60 ºC Posisi Kerja: 2 unit
    Warna: Putih Bahan pemanas: Baja Tahan Karat
    Kekuatan total: 1000W Layanan OEM: Tersedia

    Summary
    The test principle of the Floc Point Test Apparatus is as follows: mix a certain amount of sample and refrigerant in the test tube, put them into the cold bath of the floc point tester after mutual dissolution, gradually cool them down at a certain speed, observe under the light, and record the temperature at this time when the milky or flocculation phenomenon begins to appear.
    The Floc Point Test Apparatus is applicable to mineral oil refrigerator oil and synthetic oil refrigerator oil.


    I. Main technical features
    1. Double compressor cascade refrigeration ensures the supply of cooling capacity;

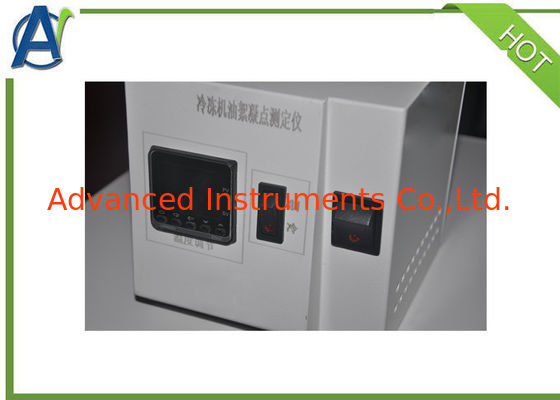

    2. Microcomputer temperature controller. Digital display, accuracy ± 0.2 ºC PT100 sensor;

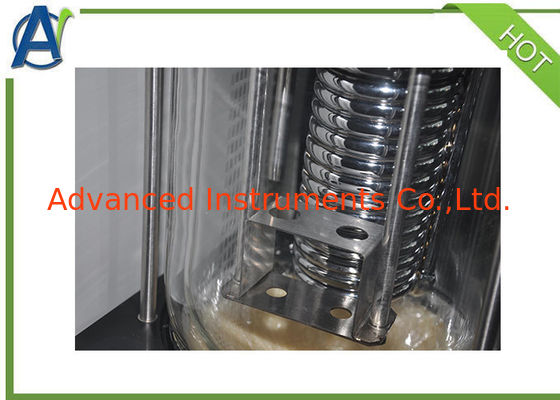

    3. Glass Dewar bottle for cold bath, good heat preservation effect;
    4. Split structure to reduce the damage caused by instrument vibration;
    5. The Floc Point Test Apparatus provides Stainless steel heater;
    6. Evaporator adopts copper chrome plated coil;
    7. The back of the Dewar bottle is provided with sunlight for easy observation;
    8. Stainless steel clamping system can quickly clamp the test tube;
    9. The Floc Point Test Apparatus is supplied with special glass test tube, meeting the standard requirements.

    II. Main technical specifications
    1 Power supply AC(220±10%)V, 50Hz
    2 Applicable standard DIN 51351,GB/T12577
    3 Cooling method Double compressor
    4 Temperature range RT~60ºC
    5 Temperature controlling digital PID temperature controller
    6 Total power 1KW
    7 Working position 2 units



    DIN 51351 Floc Point Test Apparatus for Refrigerator Oils by Pressure Tube Method
