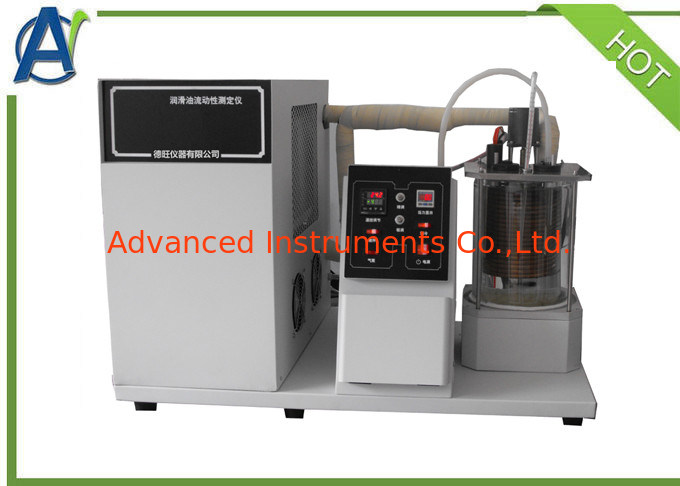

DIN 51568 Lubricating Oils Flow Ability Test Apparatus by U-tube Method

DIN 51568 Lubricating Oils Flow Ability Test Apparatus by U-tube Method

    • DIN 51568 Lubricating Oils Flow Ability Test Apparatus by U-tube Method
    • DIN 51568 Lubricating Oils Flow Ability Test Apparatus by U-tube Method
    • DIN 51568 Lubricating Oils Flow Ability Test Apparatus by U-tube Method
    • DIN 51568 Lubricating Oils Flow Ability Test Apparatus by U-tube Method

    Detail produk:

    Tempat asal: CINA
    Nama merek: AI
    Sertifikasi: ISO
    Nomor model: AIC-51568

    Syarat-syarat pembayaran & pengiriman:

    Kuantitas min Order: 1 set
    Harga: Bisa dinegosiasikan
    Kemasan rincian: Papan keras
    Waktu pengiriman: 30 Hari
    Syarat-syarat pembayaran: L/C, T/T, Western Union
    Menyediakan kemampuan: 20 set per bulan
    Hubungi sekarang
    Detil Deskripsi produk
    Catu Daya: AC220V /50Hz Metode pendinginan: kompresor ganda
    Standar uji: DIN 51568 Metode kontrol suhu: Omron
    Kisaran kontrol suhu: RT~60 ºC Posisi Kerja: 2 unit
    Warna: Abu-abu Bahan pemanas: Baja Tahan Karat
    Kekuatan total: 1000W Rentang tekanan: 980±10PA

    Summary
    This Flow Ability Test Apparatus is applicable to determine ability to flow of lubricating oil.
    The operating principle is to measure the rising speed of lubricating oil in the U-shaped pipe under constant pressure and specified low temperature conditions, which is expressed by the temperature when the rising speed under such conditions is 10mm/min.


    I. Main technical features
    1. The Flow Ability Test Apparatus adopts Double compressor cascade refrigeration ensures the supply of cooling capacity;
    2. Microcomputer temperature controller, digital display, accuracy ± 0.2 ºC PT100 sensor;
    3. Glass Dewar bottle for cold bath, good heat preservation effect;
    4. Split structure to reduce the damage caused by instrument vibration;
    5. The Flow Ability     Test Apparatus provides Stainless steel heater;
    6. Evaporator adopts copper chrome plated coil;
    7. The back of the Dewar bottle is provided with sunlight for easy observation;
    8. Stainless steel clamping system can quickly clamp the test tube;
    9. Special glass test tube, meeting the standard requirements;
    10. The Flow Ability     Test Apparatusdisplay pressure digitally.

    II. Main technical specifications
    1 Power supply AC(220±10%)V, 50Hz
    2 Applicable standard DIN 51568, GB/T12578
    3 Cooling method Double compressor
    4 Temperature range RT~60ºC
    5 Temperature controlling Digital PID
    6 Total power 1KW
    7 Pressure range 980±10PA



    DIN 51568 Lubricating Oils Flow Ability Test Apparatus by U-tube Method
