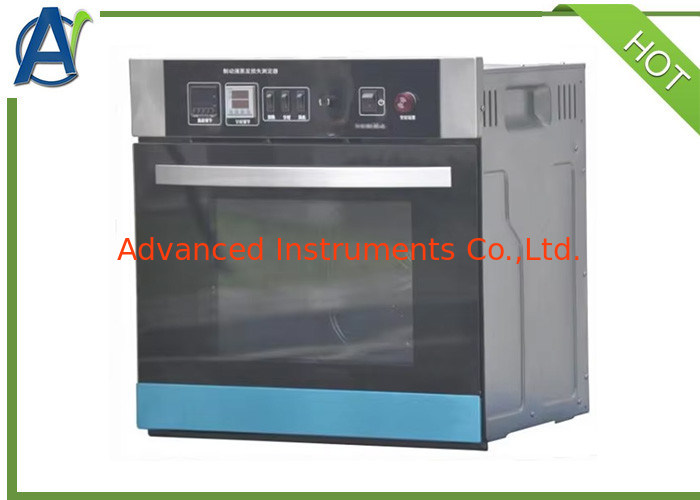

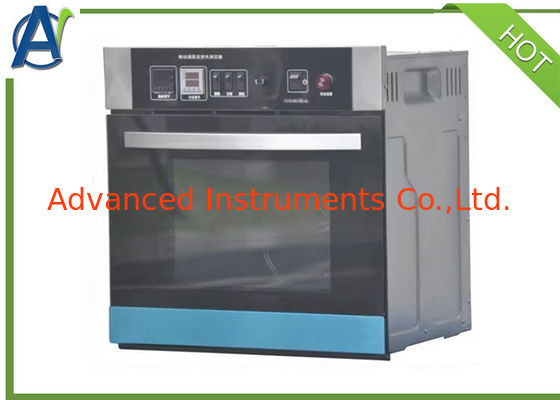

Name: ISO4925 Evaporation Loss Measuring Apparatus for Brake Fluid Analyzing
Brand: Advanced Instruments Co.,Ltd
SKU: F8205
Availability: InStock

Rumah Produk Pengukuran Cairan Rem

ISO4925 Evaporation Loss Measuring Apparatus for Brake Fluid Analyzing

Detail produk:

Tempat asal:	CINA
Nama merek:	AI
Sertifikasi:	ISO
Nomor model:	F8205

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 set
Harga:	Bisa dinegosiasikan
Kemasan rincian:	Papan keras
Waktu pengiriman:	30 Hari
Syarat-syarat pembayaran:	Western Union, T/T, L/C
Menyediakan kemampuan:	20 set per bulan

Hubungi sekarang

Detil Deskripsi produk

Kisaran Pengontrolan Suhu:	sekitar ~ 150 ℃	Metode Pemanasan:	Tabung pemanas listrik
Catu Daya:	AC220V /50Hz	Metode pengendalian suhu:	Pengontrol suhu PID digital
Metode pengaturan waktu:	tim digital	Metode mengkhawatirkan:	bel
Standar uji:	Bahasa Indonesia: ISO4925	Jaminan:	1 tahun

Summary

This Evaporation Loss Measuring Apparatus is used to evaluate the high-temperature performance of brake fluid.

The test principle involves placing a specified amount of brake fluid in the instrument and maintaining it at a constant temperature for 168 hours. The evaporative loss is then calculated based on the mass change before and after the constant temperature exposure.

Main Features

1. Specialized Petri Dishes: Meet standard requirements with an outer diameter of 100mm and a height of 15mm.

2. Heating Chamber with Ventilation: The top of the heating chamber is equipped with ventilation holes.

3. Exclusive Vibration Damping Technology: Features low noise levels.

4. Microcomputer Temperature Controller: With PID self-tuning and PT100 temperature sensor for high precision.

5. Digital Timer with Buzzer Alarm: Alerts when the test is completed.

6. Instrument Housing: Made of cold-rolled steel plate with a surface treated by electrostatic spray coating.

Technical specifications

1	Power supply	AC 220 V±10%, 50 Hz
2	Temperature control range	ambient~150℃
3	Heating method	Electric heating tube heating
4	Temperature control method	Digial PID temperature controller
5	Timing method	Digital timer
6	Alarming method	Buzzer

ISO4925 Evaporation Loss Measuring Apparatus for Brake Fluid Analyzing
