Name: EN 60903 Fire Resistant Tester for Electrical Insulating Gloves
Brand: Advanced Instruments Co.,Ltd
SKU: GVF
Availability: InStock

Rumah Produk Uji ketahanan api

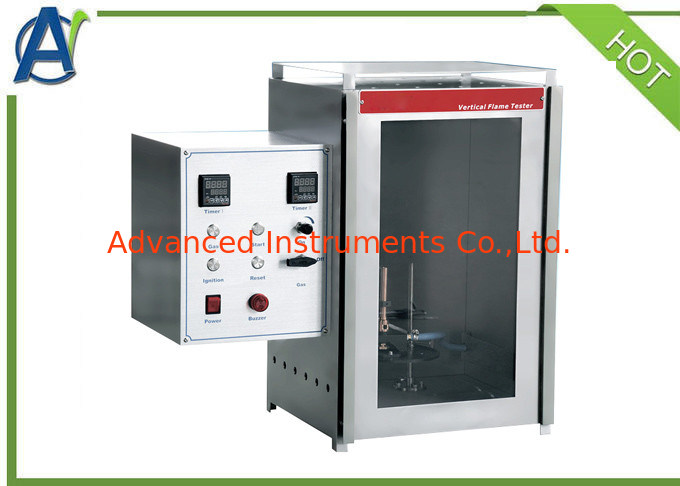

EN 60903 Fire Resistant Tester for Electrical Insulating Gloves

Detail produk:

Tempat asal:	CINA
Nama merek:	AI
Sertifikasi:	ISO
Nomor model:	GVF

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 SET EN 60903 Penguji Tahan Api
Harga:	Bisa dinegosiasikan
Kemasan rincian:	EN 60903 Penguji Tahan Api dikemas dalam kotak kayu lapis
Waktu pengiriman:	40 hari
Syarat-syarat pembayaran:	Serikat Barat, T/T, L/C, MoneyGram
Menyediakan kemampuan:	50 set per bulan

Hubungi sekarang

Detil Deskripsi produk

Standar uji:	EN 60903	Fungsi:	Uji ketahanan api
Objek uji:	Sarung Tangan Isolasi Listrik	Berat:	19kg
Dimensi:	500mm(L)X 550mm(T)X 300mm(D)	Catu Daya:	220V,50Hz,3A
Diameter bagian dalam pembakar:	9.5mm±0.3mm	Jaminan:	1 tahun

Product Introduction

Insulating gloves flame resistance tester, developed according to GB/T17622-2008 and EN 60903, the insulation gloves standard, suitable for live working insulation gloves flame resistance test.

Performance characteristics

1. The standard stainless steel box is equipped with a transparent observation window, which can detect the flame spread rate in time;

2. Insulating gloves flame resistance tester is equipped with one stopwatch timer and one ignition device;

3. The needle valve adjusts the height of the flame;

4. The burner is fixed on a sliding track for easy operation, and the needle valve can adjust the flame height;

5. Insulating gloves flame resistance tester is equipped with a Bunsen burner conforming to ASTM D5025 standard, with an inner diameter of 9.5mm±0.3mm, and the flame temperature and height can be adjusted;

6. The test equipment has two GB/T17622-2008 6.6.2 standard stainless steel sample holders;

7. The insulating golves fire resistance tester is euipped with flame height gauge.

Installation Requirement

1	Power supply	220V,50Hz,3A
2	Environment conditions	Temperature (20 ± 2) °C,humidity (65 ± 5) %
3	Required gas	Propane
4	Dimension	500mm(W)X 550mm(H)X 300mm(D)
5	Weight	19KG

EN 60903 Fire Resistant Tester for Electrical Insulating Gloves
