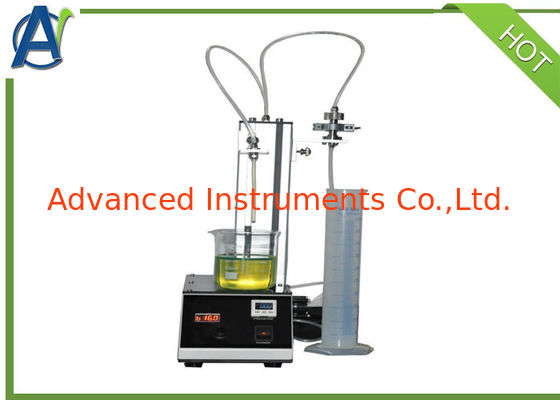

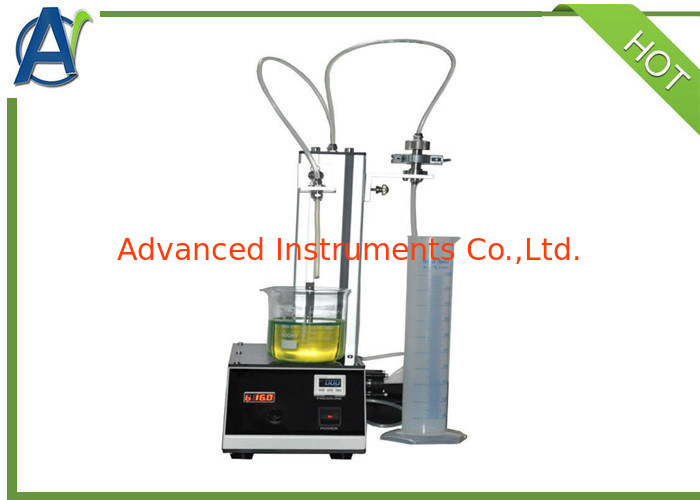

Name: ASTM D2086 Filter Blocking Tendency FBT Test Apparatus for Distillate Fuels
Brand: Advanced Instruments Co.,Ltd
SKU: FBT-I
Availability: InStock

Rumah Produk Pengujian Minyak Mentah, Bahan Bakar, dan Diesel

ASTM D2086 Filter Blocking Tendency FBT Test Apparatus for Distillate Fuels

Detail produk:

Tempat asal:	CINA
Nama merek:	AI
Sertifikasi:	ISO
Nomor model:	FBT-I

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 set Peralatan Tendensi Pemblokiran Filter
Harga:	Bisa dinegosiasikan
Kemasan rincian:	Peralatan Tendensi Pemblokiran Filter dikemas dalam kotak Hardboard
Waktu pengiriman:	20 hari
Syarat-syarat pembayaran:	L/C, T/T, Western Union
Menyediakan kemampuan:	20 set per bulan

Hubungi sekarang

Detil Deskripsi produk

Standar:	ASTM D2086	Aplikasi:	minyak bakar
Rentang tekanan:	0~105 KPa	Aliran sampel:	20ml/menit
Catu Daya:	220V±10V 50Hz	Konsumsi daya:	200W
Jaminan:	1 tahun	Filter membran:	1,6μm, serat kaca GF / A
Menampilkan:	Digital	Warna:	Putih

Introduction

This filter blocking tendency apparatus has built-in NB/SH/T 0895-2015 test requirements.
The microcomputer processing controller, color touch screen, and USB data interface are equipped. The interface operation is simple. The built-in refrigeration module, weighing module, and high-precision pressure sensor ensure the test.
The process of determining the filterability of distillate fuel oil with viscosity ranging from 1.70 to 6.20mm2/s (cSt) at 40ºC. Measurement of filter blocking trend (FPT) can determine when to stop using.

I.Main features

1.The filter blocking tendency apparatus adopts the method A specified in the standard, and all stainless steel filter chamber;
2.Digital display test pressure;
3.Quick-release chamber, easy to operate;
4.Built-in pulse damper to balance pressure;
5.Safety protection measures, automatic stop when the pressure reaches 105KPA;
6. Accurate metering pump ensures stable flow rate;

II.Technical specifications

1.Pressure range:0~105 KPa
2.Pressure resolution:1KPa
3.Sample flow:20ml/min
4.Filter membrane:1.6μm,GF/A glass fiber
5.Power supply:220V±10V 50Hz
6.Power consumption:200W
7.Flow control:Stepless speed regulation
8.Flow calibration:programmed
