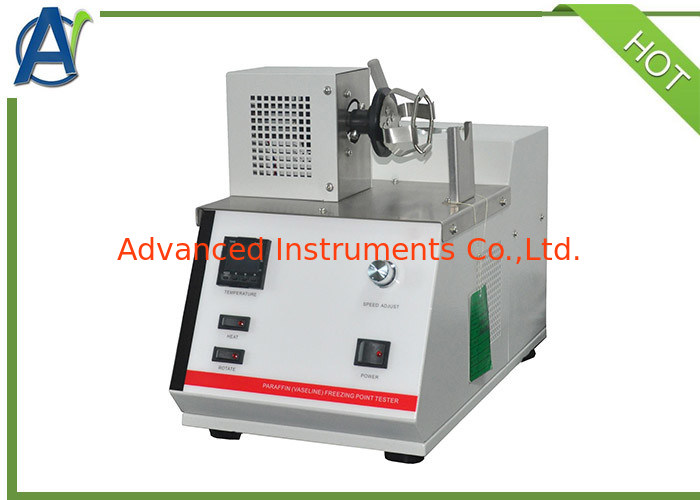

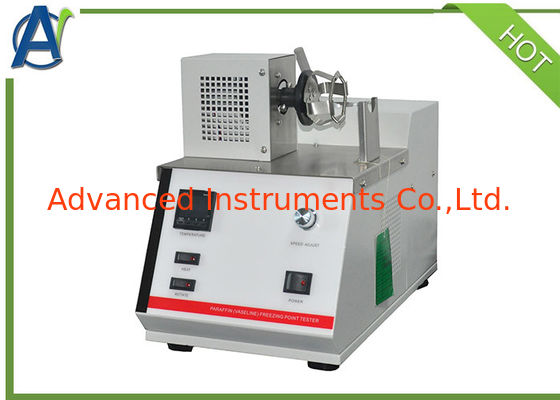

ASTM D938 Congealing Point Test Machine for Paraffin and Vaseline

ASTM D938 Congealing Point Test Machine for Paraffin and Vaseline

    • ASTM D938 Congealing Point Test Machine for Paraffin and Vaseline
    • ASTM D938 Congealing Point Test Machine for Paraffin and Vaseline
    • ASTM D938 Congealing Point Test Machine for Paraffin and Vaseline
    • ASTM D938 Congealing Point Test Machine for Paraffin and Vaseline

    Detail produk:

    Tempat asal: CINA
    Nama merek: AI
    Sertifikasi: ISO
    Nomor model: AIC-938

    Syarat-syarat pembayaran & pengiriman:

    Kuantitas min Order: 1 set Mesin Uji Titik Pengembunan
    Harga: Bisa dinegosiasikan
    Kemasan rincian: Papan keras
    Waktu pengiriman: 20 hari
    Syarat-syarat pembayaran: L/C, T/T, Western Union
    Menyediakan kemampuan: 20 set per bulan
    Hubungi sekarang
    Detil Deskripsi produk
    Standar Uji: GB/T8026 ISO6244,ASTM D127 Metode rotasi: penggerak motor DC
    Kecepatan rotasi: 2,5 dtk/r Konsumsi daya: 800W
    Catu Daya: AC220V ± 10% 50Hz Temp.controller: PID yang diimpor
    Metode Pemanasan: Bath logam Warna: Putih

    Introduction

    The congealing point is a characteristic of paraffin products that is of interest to many paraffin users. This process is the temperature at which the
    test sample cools to form congealed or stops flowing. At this temperature, petroleum wax may be solid or near solid, or semi solid, and is quite soft,depending on the composition of the paraffin or petrolatum being tested. When the sample is petrolatum, the congealing is related to the gel
    structure of the sample when it is cooled.
    The principle of congealing point testing is to melt the paraffin sample and stick the paraffin droplets to the mercury ball of the thermometer. A preheated flask is used as an air jacket to cool the petroleum wax adhered to the mercury ball at the rated speed until it condenses. The freezing point can be reduced by the thermometer temperature, and when the paraffin droplets stop flowing, the observed temperature is the congealing point.
    The congealing point test machine is also suitable for testing Vaseline.



    Characteristic

    1. Heating the sample in a metal bath is safe, environmentally friendly, and free from open flames;
    2. The motor drives the horizontal axis of the sample to rotate, reducing Personal equation;
    3. The rotation speed can be adjusted according to requirements;
    4. The holding device can be easily operated;
    5. Microcomputer temperature controller, PID adjustable temperature control, PT100 temperature sensor, high accuracy;
    6. The congealing point test machine is equipped with dedicated thermometers and test tube plugs;



    Technical specifications

    1 Applicable standard ASTM D938
    2 Temperature control method imported digital display PID temperature controller
    3 Heating method metal bath heating
    4 Rotation method DC motor drive
    5 Rotation speed 2.5s/r
    6 Total power consumption 800W
    7 Working power supply AC220V ± 10% 50HZ




    ASTM D938 Congealing Point Test Machine for Paraffin and Vaseline
