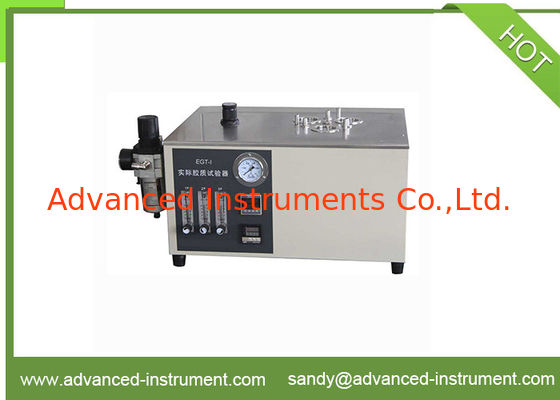

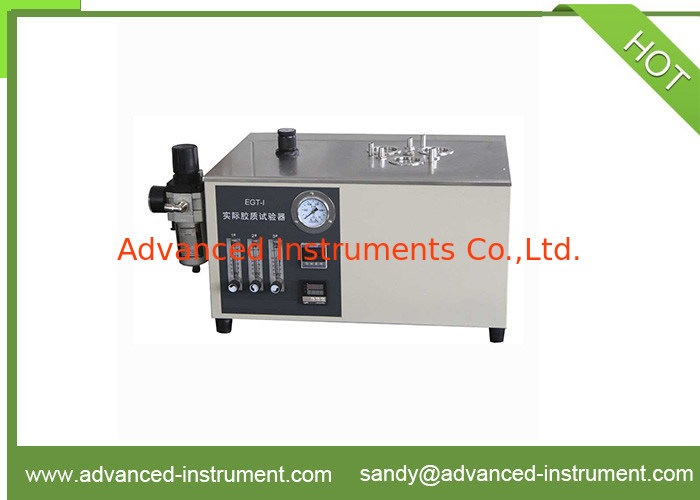

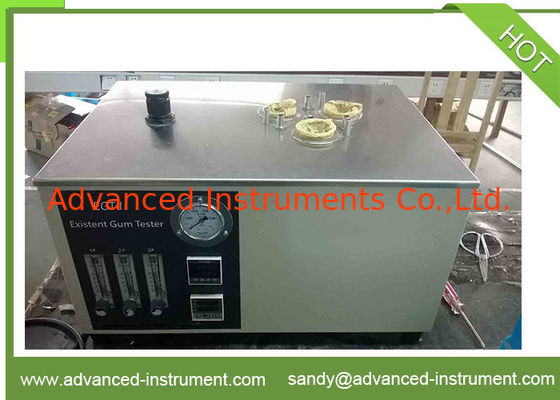

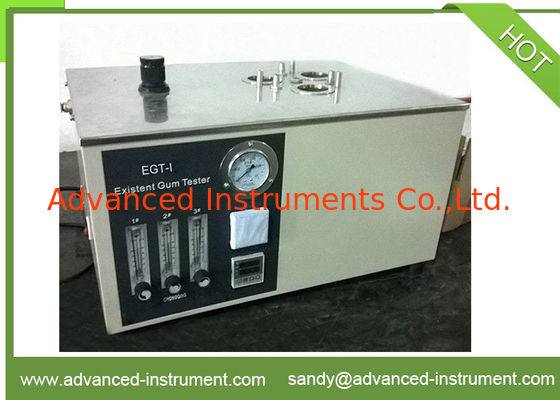

ASTM D381 Fuel Oil Existent Gum Testing Equipment by Jet Evaporation Method

ASTM D381 Fuel Oil Existent Gum Testing Equipment by Jet Evaporation Method

    • ASTM D381 Fuel Oil Existent Gum Testing Equipment by Jet Evaporation Method
    • ASTM D381 Fuel Oil Existent Gum Testing Equipment by Jet Evaporation Method
    • ASTM D381 Fuel Oil Existent Gum Testing Equipment by Jet Evaporation Method
    • ASTM D381 Fuel Oil Existent Gum Testing Equipment by Jet Evaporation Method

    Detail produk:

    Tempat asal: CINA
    Nama merek: AI
    Sertifikasi: ISO
    Nomor model: EGT-I

    Syarat-syarat pembayaran & pengiriman:

    Kuantitas min Order: 1 set
    Harga: Bisa dinegosiasikan
    Kemasan rincian: Papan keras
    Waktu pengiriman: 20 hari
    Syarat-syarat pembayaran: L/C, T/T, Western Union
    Menyediakan kemampuan: 20 set per bulan
    Hubungi sekarang
    Detil Deskripsi produk
    Standar: Alat Uji Gusi yang Ada ASTM D381 Metode pengujian: Metode Penguapan Jet
    Suhu Kerja: (160~165)℃ Dimensi keseluruhan: 590*480*340mm
    Catu Daya: AC (220 ± 10%) V, 50Hz Konsumsi daya: 2.5kw
    Jaminan: 1 tahun Unit kerja: 3

    ASTM D381 Fuel Oil Existent Gum Testing Equipment by Jet Evaporation Method

    Summary
    This existent gum tester is designed and made as per standards GB/T 8019 Standard test method for gum content in fuels by jet evaporation and ASTM D381Standard test method for gum content in fuels by jet evaporation. It is suitable to determine the existent gum content of aviation gasoline and motor gasoline (Not suitable to determine the existent gum content of aviation turbine fuel)

    I. Main technical features
    1. This existent gum apparatus equips a specially designed heating bath. The gas circuit is designed reasonably and the effect of evaporation is good.
    2. The material of working bench is stainless steel. It has 3 sample holes. Each jet flow can be adjusted and controlled by an independent flowmeter. It can do 3 determinations at the same time.
    3. This existent gum instrument is desktop structure. Simple design and easy to operate. It equips an air compressor to make it meet requirements of standard.

    II. Main technical specifications
    Power supply AC(220±10%)V,50Hz,2500W
    Dimension of evaporation bath Φ260mm*130mm
    Sample positions 3 positions
    Dimension of sample positions Φ51mm*70mm
    Working temperature (160~165)℃
    Temperature control Automatic
    Temperature display Digital display
    Flow display Displayed by a ball float type flowmeter.
    Working pressure of air reducing valve 0.035MPa
    Air source External connection, over (1000±150)ml/s
    Dimension 590*480*340mm (Thermometer holder is not included)


    III.Accessories

    No. Item Unit Qty Remarks
    1 Air compressor Set 1
    2 Air compressor power supply line(Connected by air compressor specification requirements) Piece 1 Instructions included
    3 Trumpet type nozzle Piece 3
    4 Thermometer holder Piece 3
    5 Beaker Piece 6
    6 Thermometer (-5℃〜400℃, scale division is ±1℃) Piece 4
    7 15 A fuse (Φ5×20) Piece 2
    8 Air hose Piece 1
    9 Sintered glass funnel Piece 1
    10 Stainless steel forceps (25 cm) Piece 1
    11 Crucible pliers Piece 1
    12 Air filter assembly Set 1 User-installed






    There are 3 models Existent Gum Testing Equipment,model I is 3 positions,model II is 5 positions,and model III is supplied with steam generator for aviation jet fuel analysis.

    ASTM D381 Fuel Oil Existent Gum Testing Equipment by Jet Evaporation Method
