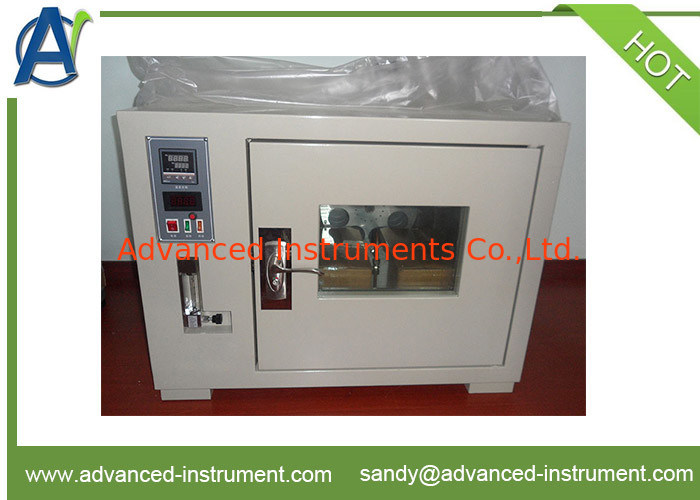

ASTM D2872 Rolling Thin Film Oven(Effect of Heat and Air on Moving Asphalt Film)

ASTM D2872 Rolling Thin Film Oven(Effect of Heat and Air on Moving Asphalt Film)

    • ASTM D2872 Rolling Thin Film Oven(Effect of Heat and Air on Moving Asphalt Film)
    • ASTM D2872 Rolling Thin Film Oven(Effect of Heat and Air on Moving Asphalt Film)
    • ASTM D2872 Rolling Thin Film Oven(Effect of Heat and Air on Moving Asphalt Film)
    • ASTM D2872 Rolling Thin Film Oven(Effect of Heat and Air on Moving Asphalt Film)
    • ASTM D2872 Rolling Thin Film Oven(Effect of Heat and Air on Moving Asphalt Film)

    Detail produk:

    Tempat asal: CINA
    Nama merek: AI
    Sertifikasi: ISO
    Nomor model: RTFOT

    Syarat-syarat pembayaran & pengiriman:

    Kuantitas min Order: 1 buah
    Harga: Bisa dinegosiasikan
    Kemasan rincian: Kasus Kayu Lapis
    Waktu pengiriman: 10 hari
    Syarat-syarat pembayaran: T/T, Western Union
    Menyediakan kemampuan: 1000 pcs/bulan
    Hubungi sekarang
    Detil Deskripsi produk
    Standar uji: ASTM D2872 Laju aliran udara: (4000±200) mL /menit
    Kecepatan rotasi: (15±0,2) putaran /mnt Kisaran kontrol suhu: 163℃
    Metode pengujian: Oven Film Tipis Bergulir Aplikasi: menentukan hilangnya massa aspal jalan raya
    Catu Daya: AC (220 ± 10%) V, 50Hz Jaminan: 1 tahun

    Asphalt RTFOT Apparatus Bitumen Rolling Thin Film Oven Test Equipment

    ASTM D2872 Rolling Thin Film Oven(Effect of Heat and Air on Moving Asphalt Film)



    Summary
    This rolling thin film oven is designed and made as per industrial standard T 0610-2011 Standard Test Method for Effect of Heat and Air on a Moving Film of Asphalt in JTG E20-2011 Standard Test Methods of Bitumen and Bituminous Mixtures for Highway Engineering.
    It is suitable to determine mass loss of highway asphalt rolling thin film after heating, and the change of penetration, viscosity, ductility and breaking point of asphalt residue after the thin film has been heated, so as to estimate the aging performance of bitumen.

    I. Main technical features
    1. This RTFOT is composed of electric control component, working oven and mechanical drive. An illuminating light is equipped in the oven for convenient observation.
    2. There is an air compressor in the oven to supply the air needed for the test. The air can be controlled by a flowmeter on the panel.
    3. This rolling thin film oven test equipment adopts high precise temperature controller which can meet test requirements.


    II.Specifications:

    1 Power supply AC(220±10%)V, 50Hz
    2 Heating power 2.4kW
    3 Working temperature 163℃
    4 Temperature control precision ±0.5℃
    5 Rotating speed of turn plate (15±0.2) r /min
    6 Air flow rate (4000±200) mL /min
    7 Timing unit Alert at 85 min
    8 Ambient temperature (5~50)℃
    9 Relative humidity ≤85%
    10 Maximum power consumption 2.6kW



    III.Accessories list

    No. Name Unit Qty Memo
    1 Asphalt RTFOT Rolling Thin Film Oven Set 1
    2 Sample bottle Piece 8
    3



    Mercury thermometer

    (150-170℃, scale division is 0.5℃)



    		 Piece 1
    4 Fuse 20A(Φ6×30) Piece 2 Reserve
    5 Socket(250V 16A three-core) Piece 1
    6 Illuminating lamp(installed by user) Piece 1 One as reserve
    7 Operation manual Piece 2
    8 Temperature control device usage manual Piece 1
    9 Quality certificate Piece 1
