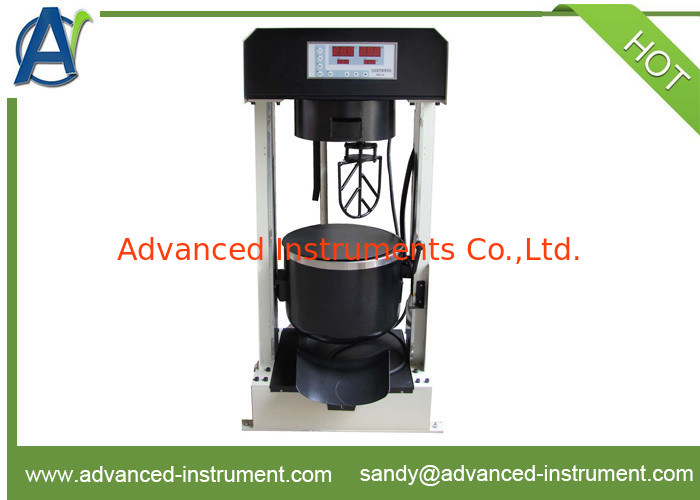

Automatic Bitumen And Bituminous Mixtures Blender Machine 20L/60L

Automatic Bitumen And Bituminous Mixtures Blender Machine 20L/60L

    • Automatic Bitumen And Bituminous Mixtures Blender Machine 20L/60L
    • Automatic Bitumen And Bituminous Mixtures Blender Machine 20L/60L
    • Automatic Bitumen And Bituminous Mixtures Blender Machine 20L/60L
    • Automatic Bitumen And Bituminous Mixtures Blender Machine 20L/60L
    • Automatic Bitumen And Bituminous Mixtures Blender Machine 20L/60L

    Detail produk:

    Tempat asal: CINA
    Nama merek: AI
    Sertifikasi: ISO
    Nomor model: MB-20

    Syarat-syarat pembayaran & pengiriman:

    Kuantitas min Order: 1 buah
    Harga: Bisa dinegosiasikan
    Kemasan rincian: Kasus Kayu Lapis
    Waktu pengiriman: 10 hari
    Syarat-syarat pembayaran: T/T, Western Union
    Menyediakan kemampuan: 1000 pcs/bulan
    Hubungi sekarang
    Detil Deskripsi produk
    Kapasitas: 20L/60L Catu Daya: AC(380±10%)V,50 jam
    Kisaran kontrol suhu: suhu kamar ~ 200 ℃ Rentang waktu: (0~999) dtk
    Berat: 210kg Ukuran: 600mm×400mm×1300mm
    Tujuan: tentukan laju waktu (detik) aliran cairan keluar dari viskometer Engler

    Bitumen And Bituminous Mixtures BlenderAutomatic Bitumen And Bituminous Mixtures Blender Machine 20L/60L

    Summary
    This asphalt blender is designed and made as per industrial standard T 0702-2011 Production Method for Test Specimen of Bituminous Mixture(Compaction method) in JTG E20-2011 Standard Test Methods of Bitumen and Bituminous Mixtures for Highway Engineering. It is used to blend the test specimen of bituminous mixtures before production.
    The size of blender is small, space saving and easy to operate. It is a preferred instrument for blending the bituminous mixture for bitumen production companies, road and bridge building units, colleges and scientific research institutes.

    I. Main technical features
    1. This bituminous mixture blender adopts advanced microcomputer control technology. Temperature can be set from ambient to 200℃ at will and automatically adjusted by PID. The blending time can be controlled automatically. It achieves the automation for operation.
    2. This blending machine has protecting function for phase sequence which can prevent the machine from damage because of phase sequence fault.
    3. Floor type structure. Reasonable design and easy to use.

    II. Main technical parameters and specifications
    1 Blending amount 20L
    2 Temperature control range Room temperature~200℃
    3 Temperature control accuracy ±5℃
    4 Timing range (0~999) s
    5 Timing accuracy ±0.1s
    6 Rotation rate of paddle Complete revolution 47R/min, Autorotation 76R/min
    7 Lifting motor Alternating current 380V,250W；1400R/min；50Hz
    8 Blending motor Alternating current 380V, 550W；1400R/min；50Hz
    9 Overall dimension 600mm×400mm×1300mm
    10 Net weight 215kg
    11 Power supply AC(380±10%)V；16A；50Hz(three-phase four-wire with null line)
    12 Ambient temperature (-5~+50)℃
    13 Relative humidity Relative humidity

    IV.Package list

    No.

    		Name Unit Qty Memo
    1 Automatic Mixture Blender Set 1
    2 Discharge shovel Piece 1
    3 Operation manual

    Piece

    		1
