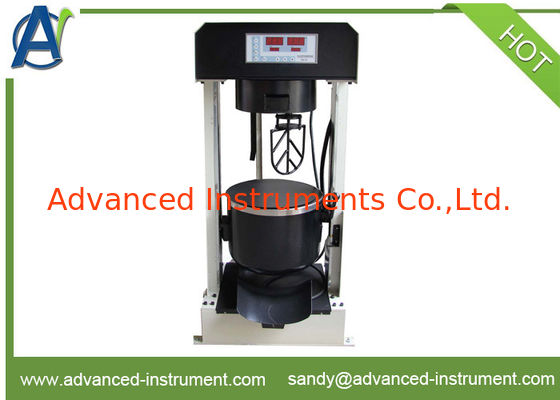

Automatic Bitumen Wheel-Track Molding Machine
Summary
The wheel track molding machine is designed and made as per T0703-2011 “Bituminous Mixtures Sample Making Method (Wheel-grind Method)” in the Industry Standard of People’s Republic of China JTG E20-2011 Standard Test Methods for Bitumen and Bituminous Mixtures for Highway Engineering.
It is suitable to mill bituminous mixtures to molding .It is also suitable to determine the sample making method (wheel-grind method) for other physical and mechanical characteristics of bituminous mixtures.
I. Main technical characteristic
1. The wheel track molding machine adopts floor type structure .And the test mode specification is 300mm*300mm, Variation of height is from 30 mm to 100 mm, and it can do adjustment at random.
2. Gripper mechanism of test mode installation is advanced, convenient to use, safety and reliable.
3. The test mode of wheel track sample making equipment can automatic centering, no adjustment after installation of the test mode.
4. Press the stop button, and it can let the dolly stop to any location.
5. The compaction times of the dolly can be set at random, and record times readily .When the compaction times arrive to set value, the compaction can be stopped.
II. Main technical parameters and specifications
| 1 |
The mill pinion specification |
radius is 500mm ,width is 300mm |
| 2 |
The mill pinion compaction load control range |
(200~700)/cm (do adjustment at random) |
| 3 |
The mill pinion compaction load controlling accuracy |
+3N/cm |
| 4 |
The mill pinion temperature controlling range |
ambient temperature ~200℃ |
| 5 |
The mill pinion temperature controlling accuracy |
+3℃ |
| 6 |
The compaction times |
(12+1) time/min |
| 7 |
Test mode specification |
300mm*300mm*(30~100)mm |
| 8 |
Dimension |
1216mm*640mm*1750mm |
| 9 |
Total weight |
500kg |
| 10 |
Power supply |
AC380V,50Hz,300W (three-phase four-wire system ,with zero line ) |
