ASTM D2172 Centrifugal Extractor Bitumen Extraction Machine for Asphalt Mixtures

Detail produk:

Tempat asal:	CINA
Nama merek:	AI
Sertifikasi:	ISO
Nomor model:	CE-I

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 buah
Harga:	Bisa dinegosiasikan
Kemasan rincian:	Kasus Kayu Lapis
Waktu pengiriman:	10 hari
Syarat-syarat pembayaran:	T/T, Western Union
Menyediakan kemampuan:	1000 pcs/bulan

Hubungi sekarang

Detil Deskripsi produk

Kecepatan putaran:	3000R/mnt	Catu Daya:	AC (220 ± 10%) V, 50Hz
Volume:	3000g	Konsumsi Daya:	550W
Berat:	45kg	Ukuran:	Ф365mm×400mm
Tujuan:	menentukan kandungan aspal dalam campuran aspal	Jaminan:	1 tahun

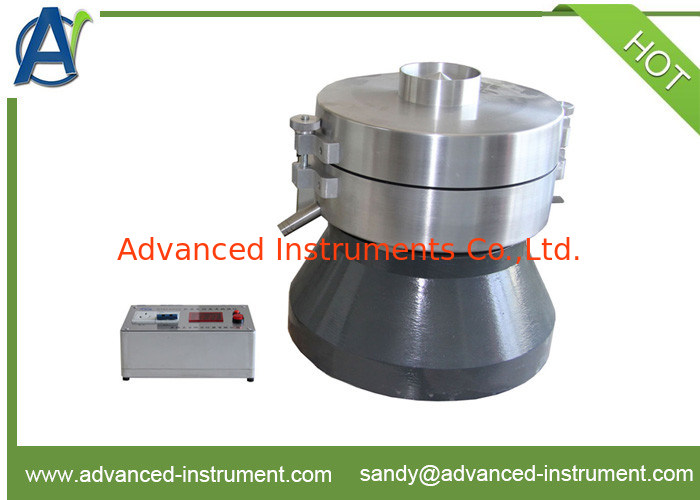

Bitumen Centrifugal Extractor

Name: ASTM D2172 Centrifugal Extractor Bitumen Extraction Machine for Asphalt Mixtures
Brand: Advanced Instruments Co.,Ltd
SKU: CE-I
Availability: InStock

Summary

The centrigugal extraction apparatus is designed and made as per T0722-1993 Standard Test Method for Bitumen Content of Bituminous Mixture by the Centrifuge Separation Method in Industrial Standard of People’s Republic of China JTG E20-2011 Standard Test Methods for Bitumen and Bituminous Mixtures for Highway Engineering.

This centrifugal extractor is suitable to determine bitumen content (bitumen-mineral aggregate ratio) in the bituminous mixture, which is made of viscous petroleum bitumen, by the centrifuge separation method.

I. Main technical features

1. Thicken aluminum alloy vessel. Stainless steel centrifugal shaft and instrument shell. Never rust .

2. Precise mechanical manufacturing technology. The rotation is stable and speed is fast.

3. This centrifugal extractor adopts digital display timer. Multilevel start. Stable test operation.

II. Main technical specifications

1. Rated rotation speed: 3000r/min

2. Power supply: AC(220±10%)V,50Hz

3. Volume: 3000g

4. Timer: 40, 60, 80, 99(s)

5. Maximum power consumption: 550W

6. Ambient temperature: -10℃～35℃

7. Relative humidity: ≤85%
