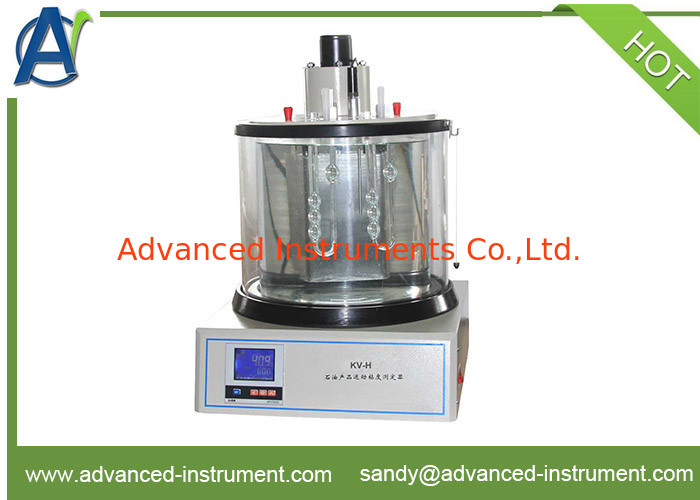

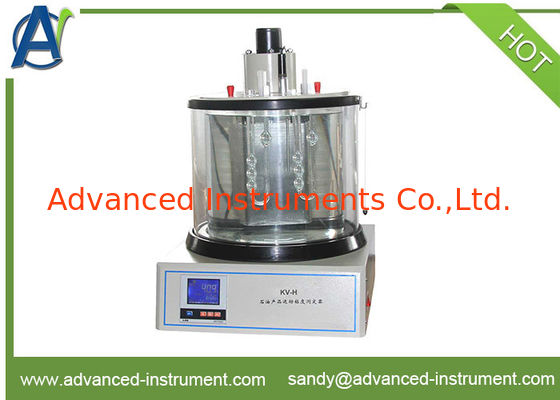

ASTM D2170 185℃ Kinematic Viscosity Test Set for Bitumen Testing

ASTM D2170 185℃ Kinematic Viscosity Test Set for Bitumen Testing

    • ASTM D2170 185℃ Kinematic Viscosity Test Set for Bitumen Testing
    • ASTM D2170 185℃ Kinematic Viscosity Test Set for Bitumen Testing
    • ASTM D2170 185℃ Kinematic Viscosity Test Set for Bitumen Testing
    • ASTM D2170 185℃ Kinematic Viscosity Test Set for Bitumen Testing

    Detail produk:

    Tempat asal: CINA
    Nama merek: AI
    Sertifikasi: ISO
    Nomor model: KV-H

    Syarat-syarat pembayaran & pengiriman:

    Kuantitas min Order: 1 buah
    Harga: Bisa dinegosiasikan
    Kemasan rincian: Kasus Kayu Lapis
    Waktu pengiriman: 10 hari
    Syarat-syarat pembayaran: T/T, Western Union
    Menyediakan kemampuan: 1000 pcs/bulan
    Hubungi sekarang
    Detil Deskripsi produk
    Waktu pemadatan: ASTM D2170 Catu Daya: AC 220 V ± 10%, 50 Hz
    Kisaran kontrol suhu: Ambien hingga 135,0℃(atau 180℃) Volume Mandi: 23 liter
    Konsumsi daya: 1800 w Ukuran: 530*400*670mm
    Tujuan: menentukan kekentalan aspal

    Asphalt Kinematic Viscosity Test SetASTM D2170 185℃ Kinematic Viscosity Test Set for Bitumen Testing

    I. Introduction:
    The asphalt kinematic viscosity test set is designed and made as per the national standard of People’s Republic of China GB/T1841 Standard Test Method for Viscosity of Polyolefin Resin Solution. It is used to determine the viscosity of decahydronaphthalene solution of polythene and polypropylene at the stipulated temperature.

    The bitumen kinematic viscometer can also be used to determine the viscosity of asphalt at the stipulated temperature as per the industrial standard of People’s Republic of China T0619 Asphalt Kinematic Viscosity Test (Capillary Viscometer Method).

    II. Features:
    1. High precision digital temperature controller. Electric stirring motor.
    2. High temperature resistant glass bath. Double layer structure.
    3. This asphalt viscometer adotps desktop structure. All-in-one design.
    4. The maximum heating temperature is 135℃(or 180℃).

    III.Specifications:

    Power supply AC 220 V±10%, 50 Hz
    Heating power 1700 W
    Temperature range Ambient to 135.0℃(or 180℃)
    Temperature control accuracy ±0.1℃
    Mercury-in-glass thermometer
    (Scale division 0.1℃)    		 Range 100℃~150℃(for maximum 135.0℃).
    Range 100℃~150℃ and range 150℃~200℃(for maximum 180.0℃).
    Bath capacity about 23 L
    Sample quantity You can make determination using 3 capillary viscometers at a time.
    Stirring motor (1) Power: 6W (2) Speed: 1200 RPM
    Ambient temperature: -10℃~+35℃ -10℃~ +35℃
    Relative humidity: ＜85％ ＜85%
    Temperature sensor: RTD, Pt100 RTD, Pt100
    Maximum power consumption 1800 W
    Capillary viscometer One group of Cannon-Fenske Opaque capillary viscometers; 7 pieces in total. They are N0.200, 300, 350, 450, 500 and 600 (The inner diameters of R tube of them are 1.02, 1.26, 1.48, 1.88, 2.20, 3.10 and 4.00 mm respectively)
    Overall dimension 530*400*670mm(Bath is included)



    IV.Accessories

    No. Item Unit Qty Remarks
    1

    Countercurrent capillary viscometer

    (a group)

    		 Piece 7
    2 Mercury thermometer (100~150℃, scale division is 0.1℃) Piece 1 Standard configuration
    Mercury thermometer (150 ~200℃, scale division is 0.1℃) Piece 1 According to the users requirements to purchase
    3 Weight ball Piece 1
    4 Sensor Piece 1
    5 Sensor sheath Piece 1
    6 Bakelite cover Piece 4
    7 Stopping ring for thermometer (1#) Piece 2
    8 Capillary viscometer holder Piece 4
    9 Silica gel stopper (3#) Piece 2
    10 15A fuse (Ф6×30) Piece 4
    11 Round glass Block 1
