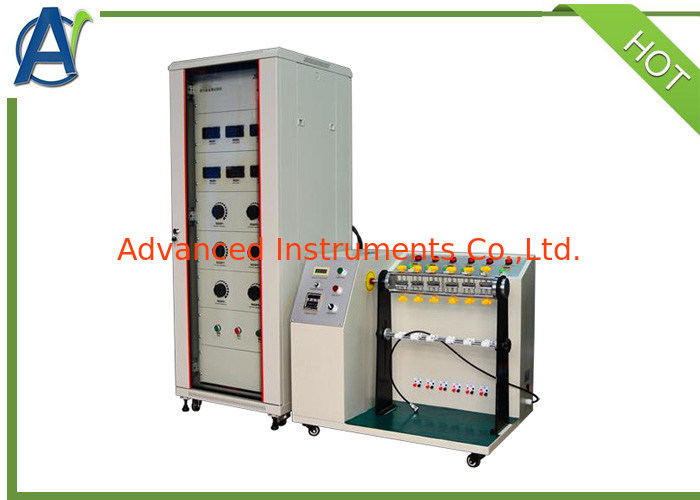

UL817 Swing Testing Equipment with 6 Test Positions for Wire Testing

Product description:

Wire Swing Testing Equipment is used for non-rewirable plug wires, household appliances wires and similar electrical appliances wires bending and load tests. Test method is to fix the specimen in the grip, and add a certain load, the grip swing around during the test, after a certain number of times, view the disconnection rate; or when it is not energized, check its total number of swing.

Standard:

• UL817-2009

Technical parameters:

• Load current: AC 0~40A, continuously adjustable

• Bending frequency: 10-60±2 times/min adjustable

• Bending angle: 10 ~ 180±2 angle, adjustable

• Test position: 6

• Bending times: 7 counters in total, one of them is the is total bending counter, 0-999999 times, pesettable, the rest six are test station counters, which are used for counting the bending times from the beginning of the test until the specimen is broken

• Weight: 50g, 100g, 200g, 300g, 500g(each of 6)

Specifications:

• Swing Testing Equipment dimensions: 850×600×810mm;

• Load cabinet dimensions: 600×600× 1610mm

• Power supply: AC 220V 50Hz
