Name: Double End Grinding Device at Speed Of 12m/s For Rubber And Plastics
Brand: Advanced Instruments Co.,Ltd
SKU: AIC22057
Availability: InStock

Rumah Produk peralatan pengujian kabel

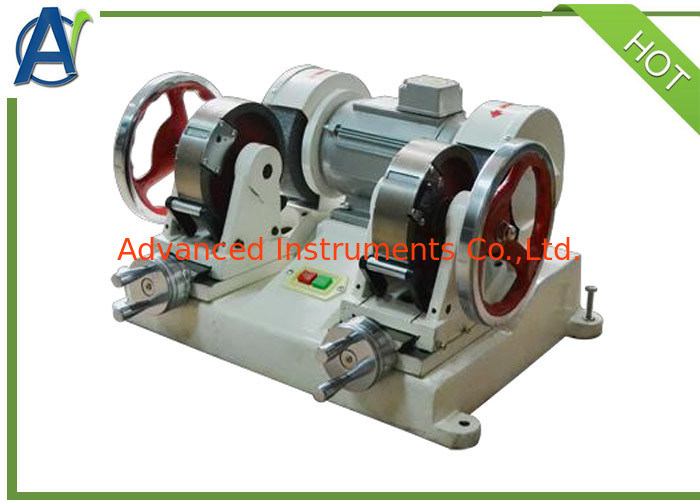

Double End Grinding Device at Speed Of 12m/s For Rubber And Plastics

Detail produk:

Tempat asal:	CINA
Nama merek:	AI
Sertifikasi:	ISO
Nomor model:	AIC22057

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 SET Perangkat Gerinda Ujung Ganda
Harga:	Bisa dinegosiasikan
Kemasan rincian:	Kasus Kayu Lapis
Waktu pengiriman:	25 hari
Syarat-syarat pembayaran:	Western Union, T/T, L/C
Menyediakan kemampuan:	50 set per bulan

Hubungi sekarang

Detil Deskripsi produk

Aplikasi:	karet, plastik dll	Kecepatan roda gerinda:	12 m/dtk
Roda Gerinda:	170×40×32,36 dan 80 butir	Motor:	tiga fase 380V, 1400r / mnt
Dimensi kerja:	diameter: 160mm×44mm	Stroke roda kerja:	20mm
Dimensi keseluruhan:	500mm×400mm×314mm	Catu Daya:	AC tiga fase 380V 50/60Hz 3A
Berat:	80kg	Garansi:	1 tahun

Product description:

Double-end grinding device is used to grind the rubber, plastic and the other similar sample to a certain thickness for the test of other testing device, with advantages of both precision grinding wheel and fine grinding wheel working at the same time.

Standard:

• GB/T 2951-2008

Technical parameters:

• Grinding wheel speed: 12m/s

• Grinding wheel: G260APRI 170×40×32, 36 grains G260APRI 170×40×32, 80 grains

• Motor:GO2-11-40.6W, three- phase 380V, 1400r /min；

• Working dimensions: diameter: 160mm×44mm, height of center: 214mm

• Working wheel stroke: 20mm

Specifications:

• Overall dimensions: 500mm×400mm×314mm

• Power supply: AC three- phase 380V 50/60Hz 3A

• Weight: 80kg
