IEC60811-1-4 Low Temperature Bending Test Machine for Wire and Cable Testing

IEC60811-1-4 Low Temperature Bending Test Machine for Wire and Cable Testing

    • IEC60811-1-4 Low Temperature Bending Test Machine for Wire and Cable Testing
    • IEC60811-1-4 Low Temperature Bending Test Machine for Wire and Cable Testing
    • IEC60811-1-4 Low Temperature Bending Test Machine for Wire and Cable Testing
    • IEC60811-1-4 Low Temperature Bending Test Machine for Wire and Cable Testing
    • IEC60811-1-4 Low Temperature Bending Test Machine for Wire and Cable Testing
    • IEC60811-1-4 Low Temperature Bending Test Machine for Wire and Cable Testing
    • IEC60811-1-4 Low Temperature Bending Test Machine for Wire and Cable Testing

    Detail produk:

    Tempat asal: CINA
    Nama merek: AI
    Sertifikasi: ISO
    Nomor model: AIC-6034A

    Syarat-syarat pembayaran & pengiriman:

    Kuantitas min Order: 1 set
    Harga: Bisa dinegosiasikan
    Kemasan rincian: Papan keras
    Waktu pengiriman: 20 hari
    Syarat-syarat pembayaran: L/C, T/T, Western Union
    Hubungi sekarang
    Detil Deskripsi produk
    Standar uji: IEC60811-1-4 ayat 8 Kelompok uji: dua kelompok
    Dimensi: 420L*400W*300Jam(mm) Diameter Spesimen: Φ2.5~Φ12.5mm
    Bahan: Sus304 Warna: Perak

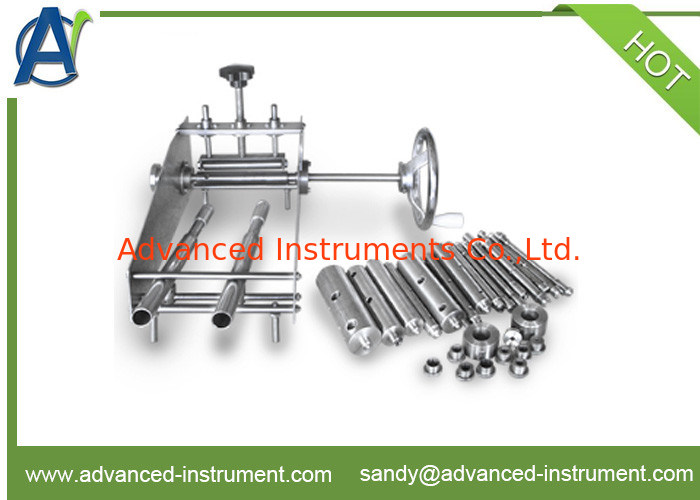

    Low Temperature Bending Test Machine

    IEC60811-1-4 Low Temperature Bending Test Machine for Wire and Cable Testing



    Introduction

    It is suitable to examine and test the performance under low temperature for circular insulating core wire under Φ12.5m and Sector Insulated Wire Core which can not make Dumbbell test specimen(Shorter axis of sheath≦20mm flat cable).



    Reference standards

    ● GB2951.14-2008, Sect 8.1&8.2

    ● IEC60811-1-4:2001

    ● JB/T4278.11-2011



    Technical specifications

    1

    Test groups

    two groups
    2

    Dimension

    420L*400W*300H(mm)
    3

    Diameter of specimen

    Φ2.5~Φ12.5mm
    4

    Outlet diameter of guiding tube(mm)

    Φ1.2,Φ2.4,Φ3.0,Φ3.8,Φ4.7,Φ5.9,Φ7.4,Φ9.2,Φ11.5,Φ14.5,totally 10 groups confirms to JB/T4278.11-2011
    5

    Diameter of winding rod

    Φ4,Φ5,Φ6,Φ7,Φ8,Φ10,Φ12,Φ14,Φ16,Φ18,Φ20,Φ24,Φ28,Φ32,Φ36,Φ40,Φ45,Φ50mm,totally 18 pieces conforms to JB/T4278.11-2011(it can also be customized)
    6

    Winding mode

    adjust speed manually
    7

    Material

    SUS304
