IEC60811-1-4 Low Temperature Impact Test Machine for Wire and Cables

IEC60811-1-4 Low Temperature Impact Test Machine for Wire and Cables

    • IEC60811-1-4 Low Temperature Impact Test Machine for Wire and Cables
    • IEC60811-1-4 Low Temperature Impact Test Machine for Wire and Cables
    • IEC60811-1-4 Low Temperature Impact Test Machine for Wire and Cables
    • IEC60811-1-4 Low Temperature Impact Test Machine for Wire and Cables
    • IEC60811-1-4 Low Temperature Impact Test Machine for Wire and Cables

    Detail produk:

    Tempat asal: CINA
    Nama merek: AI
    Sertifikasi: ISO
    Nomor model: AIC-6049

    Syarat-syarat pembayaran & pengiriman:

    Kuantitas min Order: 1 set
    Harga: Bisa dinegosiasikan
    Kemasan rincian: Papan keras
    Waktu pengiriman: 20 hari
    Syarat-syarat pembayaran: L/C, T/T, Western Union
    Hubungi sekarang
    Detil Deskripsi produk
    Standar uji: IEC 60811-1-4 ayat 8 ketinggian benturan: 100mm
    Diameter dampak: 20mm Radian kepala tumbukan: 300mm
    Dimensi: 37x15x44cm Berat: 23kg

    Low Temperature Impact Test Machine

    IEC60811-1-4 Low Temperature Impact Test Machine for Wire and Cables



    Application
    When using this impact test equipment,it should be placed in low temperature chamber with specimen.After cooling,the weight with specified weight drops from 100mm high above and impact the specimen,then observe the damage of inner and outer margins of isolation and sheath.

    This equipment should be used with AIC-6034 low temperature test chamber.



    Reference standards:

    ● GB2951.14-2008

    ● IEC60811-1-4:1985



    Main Specifications:

    1 Impact height 100mm
    2 Impact diameter 20mm
    3 Radian of impact head 300mm
    4 Guiding rod of impact hammer Ф10mm,length 8.6cm,equilateral triangle

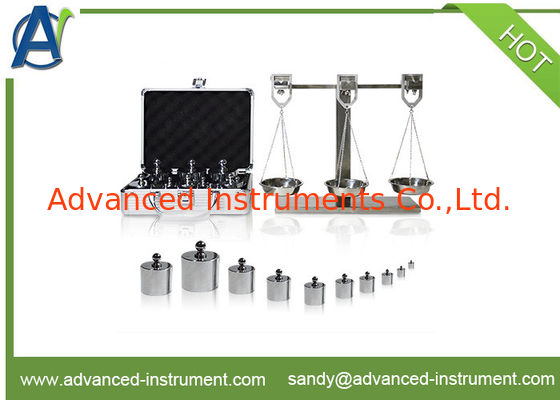

    5 Weights 100g,200g,300g,400g,500g,600g,750g,1000g,1250g,1500g,totally 10 pcs/group
    6 Base weight of impact device 10KG
    7 Height of base 40mm
    8 Dimension 37×15×44cm
    9 Weight 23KG
