Name: IEC 60754-1&2 Gas Corrosion Detection Apparatus During Combustion
Brand: Advanced Instruments Co.,Ltd
SKU: TCTA
Availability: InStock

Rumah Produk peralatan pengujian kabel

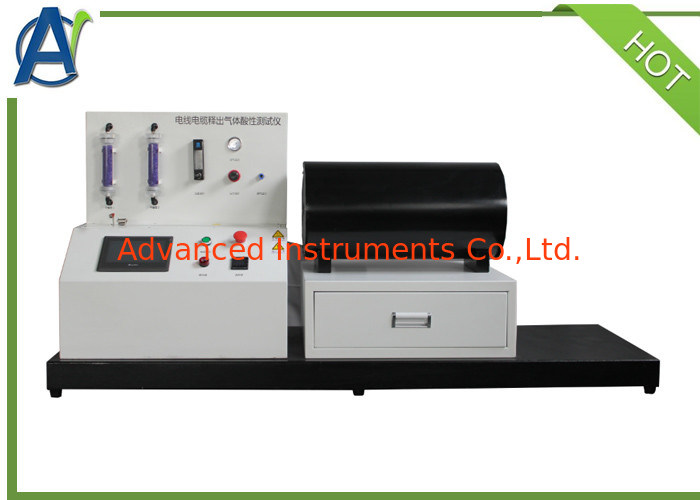

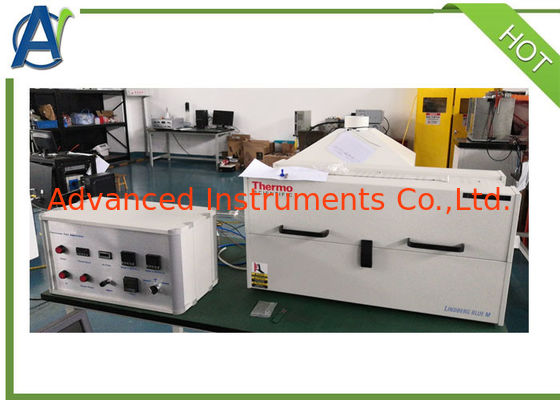

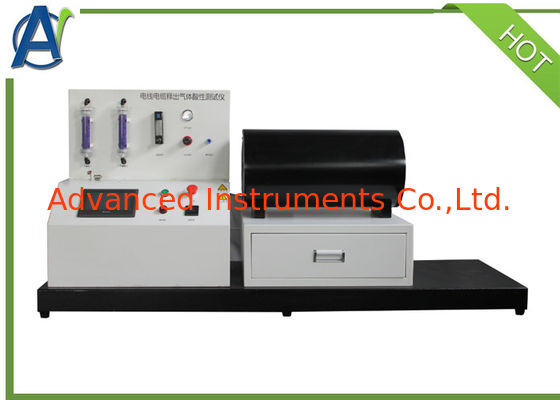

IEC 60754-1&2 Gas Corrosion Detection Apparatus During Combustion

Detail produk:

Tempat asal:	CINA
Nama merek:	AI
Sertifikasi:	ISO
Nomor model:	TCTA

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1
Harga:	Bisa dinegosiasikan
Kemasan rincian:	Kasus Kayu Lapis
Syarat-syarat pembayaran:	L/C, D/A, Serikat Barat, T/T
Menyediakan kemampuan:	100 set/bulan

Hubungi sekarang

Detil Deskripsi produk

Standar uji:	IEC 60754 Bagian 1 & 2	Panjang efektif tungku tabung:	500～600mm
Diameter dalam:	40～60mm	Ukuran kapal yang terbakar:	Panjang 45~100mm
Kisaran pengukuran konduktivitas:	0,01uS/mm~100uS/mm	Ukuran ruang sampel:	1 liter
Berat:	76kg	Catu Daya:	AC 220V, 50/60Hz, 20A
Ukuran:	1.500 (L) x 500 (L) x 600 (T) mm	kata kunci:	Alat Uji Korosi

I.Introduction
Corrosion Test Apparatus is used to test the acidity of the gas that released during combustion from cable or optical cable components material.It is designed according to GB/T 17650 and IEC 60754.
The cable material is processed by prius tube furnace.By measuring the pH value and conductivity in the released gas, the acidity of the gas generated during the combustion of the cable material is determined, including the gas volume, pH concentration, and conductivity of the halogen acid.

II. Standard of Corrosion Test Apparatus
• IEC 60754-1 Ed. 2.0 b:1994
• IEC 60754-2 Ed. 1.0 b:1991
• BS EN 50305 9.2
• GB/T 17650

III.Main feature
1. The Corrosion Test Apparatus is designed with optimized structure, logical layout, and easy to operated.
2. All the fixtures are made of stainless steel.

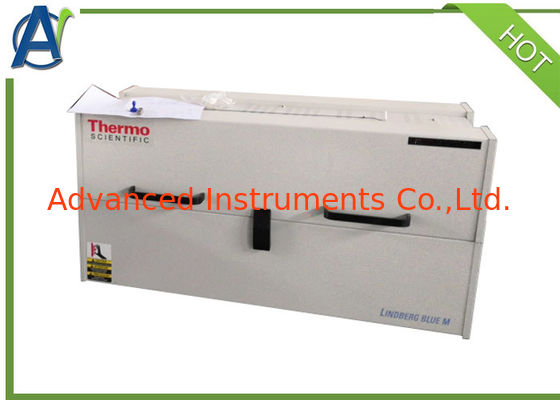

3.The effective length of the tube-type furnace is 500 ~ 600mm, inner diameter is 40 ~ 60mm, with adjustable electric systems.
4. The Corrosion Test Apparatus is equipped with imported thermocouple from United States.
5. The size of the combustion boat is length 45 ~ 100mm, width 12 ~ 30mm, depth 5 ~ 10mm.
6. The electrical conductivity measuring range is 0.01uS / mm ~ 100uS / mm.
7. The control system using an electronic temperature control, intelligent control tube furnace temperature.
8. Halogen Acid Gases Test Apparatus is equipped with two gas collection bottles.
9. The size of the sample chamber is 1 liter.
10.The Corrosion Test Apparatus is equipped with a PH value and conductivity detector, with an electronic display and an electrode.
11.Air flow meter is equipped with silicon dioxide fire pipeline to prevent corrosion by the gas.
12. Activated carbon (air filter): filter air through a filter.
13.The silicone is used for drying air source.
14.Pyrex pipeline: Users can easily insert sample into the Prius tube to protect the pipeline from damage.
15. Combustion boat moving system: combustion boat moves automatic to achieve more intelligent test.
16. The mode switching: mode switch (two test methods to choose from, IEC 60754-1 & IEC 60754-2).
17. The temperature alarm system: control the furnace temperature against overheating.
18. Timer: IEC 60754-1 or IEC 60754-2 time measurement device.
19. Drawer:used to store parts of the box (such as conductivity meters, pH meter, etc.)
20.Temperature indicator: shows the furnace core temperature.
21. Permanent magnetic stirrer: The agitator is used to stir the combustion gases in distilled water.
22.Conductivity meter:An instrument which used to measure the combustion gas conductivity.

IV.Installation requirements of Corrosion Test Apparatus
