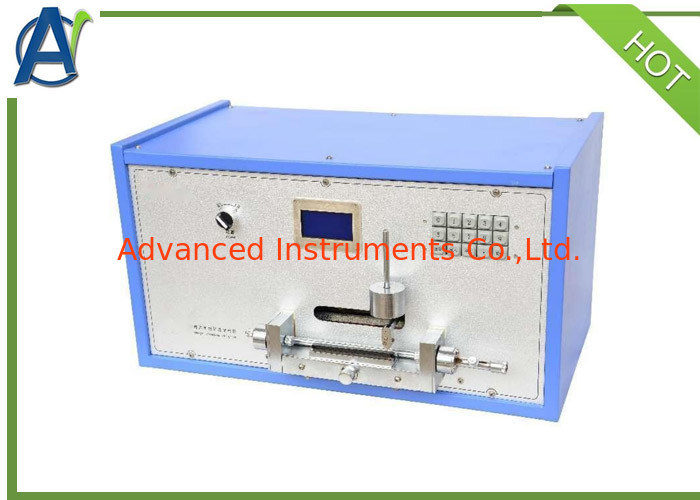

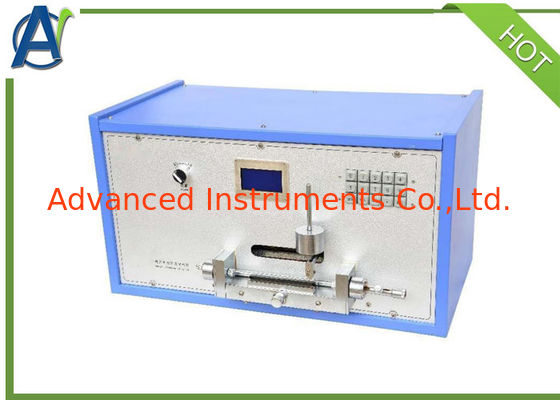

Auto Scrape Resistance to Abrasion Test Tool for Winding Wires as per IEC60851-3

Auto Scrape Resistance to Abrasion Test Tool for Winding Wires as per IEC60851-3

    • Auto Scrape Resistance to Abrasion Test Tool for Winding Wires as per IEC60851-3
    • Auto Scrape Resistance to Abrasion Test Tool for Winding Wires as per IEC60851-3
    • Auto Scrape Resistance to Abrasion Test Tool for Winding Wires as per IEC60851-3
    • Auto Scrape Resistance to Abrasion Test Tool for Winding Wires as per IEC60851-3
    • Auto Scrape Resistance to Abrasion Test Tool for Winding Wires as per IEC60851-3

    Detail produk:

    Tempat asal: CINA
    Nama merek: AI
    Sertifikasi: ISO
    Nomor model: AIZDG-25

    Syarat-syarat pembayaran & pengiriman:

    Kuantitas min Order: 1 SET IEC60851-3 Alat Uji Ketahanan Terhadap Abrasi
    Harga: Bisa dinegosiasikan
    Kemasan rincian: Satu kotak Kayu Lapis untuk Alat Uji Ketahanan terhadap Abrasi IEC60851-3
    Waktu pengiriman: 90 hari
    Syarat-syarat pembayaran: Western Union, T/T, L/C
    Menyediakan kemampuan: 10 set/bulan
    Hubungi sekarang
    Detil Deskripsi produk
    Standar uji: GB/T4074.3-2008,IEC60851-3 Jarak perpindahan scraper lukisan: >100mm
    Kecepatan gerakan scraper lukisan: 400±40mm/mnt Diameter pengikis: 0,23 ± 0,01 mm
    Tegangan uji: DC6.5±0.5V Arus hubung singkat: 20±0,5mA
    Daya Input: AC220V ± 10% 50Hz Konsumsi daya: <150w
    Dimensi keseluruhan: 640×350×355mm Berat: 45kg

    Performance Characteristics
    1.Executive standard: GB/T4074.3-2008/IEC60851-3; Inspection standard: JB/T4279.9-2008
    2.This Resistance to Abrasion Test Tool is used to measure the film scrap resistance of enameled round wires with nominal conductor diameter above 0.250mm;
    3.Application of SCM control allows for fast operation and strong anti-interference capacity;
    4.This Resistance to Abrasion Test Tool can automatically complete the whole test process and work out the average of scraping forces obtained in three times;
    5.Sample support table allows for parallel rise and fall, maintaining close contact between the entire plane with sample;
    6.As driven by precision linear rail, scraper is free from shake during movement;
    7.When film is scratched, painting scraper would automatically stop scraping, with exposed conductor of sample<3mm;
    8.Chinese/English LCD displays test operating procedure and test results;

    Major Technical Parameters

    Displacement distance of painting scraper >100mm
    Movement speed of painting scraper 400±40mm/min
    Diameter of scraper 0.23±0.01mm
    Test voltage DC6.5±0.5V
    Short-circuit current 20±0.5mA
    Scraping force error <±5%
    Input power AC220V±10% 50Hz
    Power consumption <150W
    Overall dimensions L×W×H 640×350×355mm
    Weight 45kg




    Auto Scrape Resistance to Abrasion Test Tool for Winding Wires as per IEC60851-3Auto Scrape Resistance to Abrasion Test Tool for Winding Wires as per IEC60851-3
