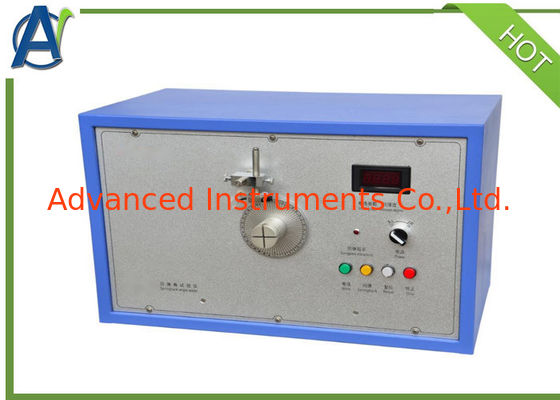

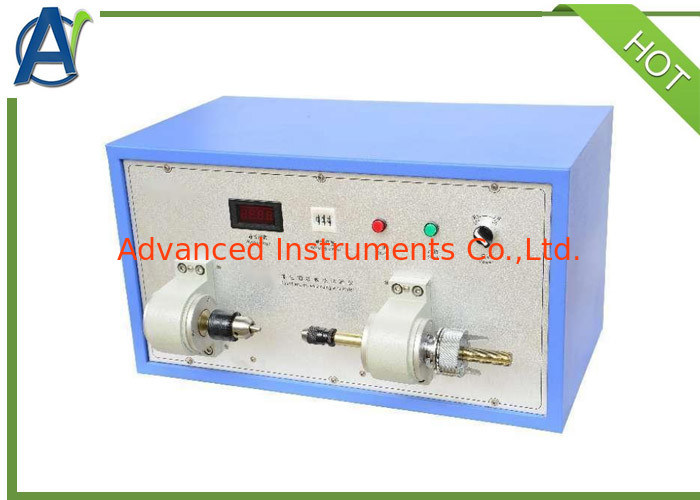

Name: IEC 60851-3 Winding Test Instrument for Enameled Round Wires
Brand: Advanced Instruments Co.,Ltd
SKU: AIJR-16A
Availability: InStock

Rumah Produk peralatan pengujian kabel

IEC 60851-3 Winding Test Instrument for Enameled Round Wires

Detail produk:

Tempat asal:	CINA
Nama merek:	AI
Sertifikasi:	ISO
Nomor model:	AIJR-16A

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 SET Instrumen Uji Belitan IEC60851-3
Harga:	Bisa dinegosiasikan
Kemasan rincian:	Satu kotak Kayu Lapis untuk Instrumen Uji Belitan IEC60851-3
Waktu pengiriman:	90 hari
Syarat-syarat pembayaran:	Western Union, T/T, L/C
Menyediakan kemampuan:	10 set/bulan

Hubungi sekarang

Detil Deskripsi produk

Standar uji:	GB/T4074.3-2008,IEC60851-3	Kecepatan belitan:	100 ± 10r / mnt
Jumlah lilitan belitan:	1~999r opsional	Warna:	Biru
Menampilkan:	dipimpin	Bahasa:	bahasa inggris
Daya Input:	AC220V ± 10% 50Hz	Konsumsi daya:	<100W
Dimensi keseluruhan:	640×345×350mm	Berat:	40kg

Performance Characteristics
1.Executive standard: GB/T4074.3-2008,IEC60851-3
2.The winding test instrument is suitable for measuring the flexibility, adhesiveness, thermal shock and other performances of the film of enameled round wire with nominal conductor diameter below 1.600mm;
3.Used with JRB-16 enameled round wire winding test bar;
4.This winding test instrument can set any number of winding turns;
5.LED would automatically display and record the number of winding turns.
6.The application of high-end SCM control allows for simple operation, steady and stable performance.

Major Technical Parameters

Winding speed	100±10r/min
Number of winding turns	1~999r optional
Input power	AC220V±10% 50Hz
Power consumption	≤100W
Overall dimensions	L×W×H 640×345×350mm
Weight	40kg

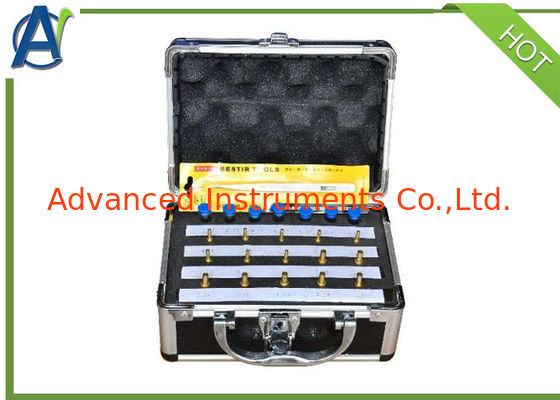

Preparation of weights:
Mini-weight hook 0.1N×1, mini-weight 0.1N×2, 0.2N×1 and 0.5N×1
Large-weight hook 1N×1, large-weight 1N×2, 2N×1 and 5N×3

IEC 60851-3 Winding Test Instrument for Enameled Round Wires
