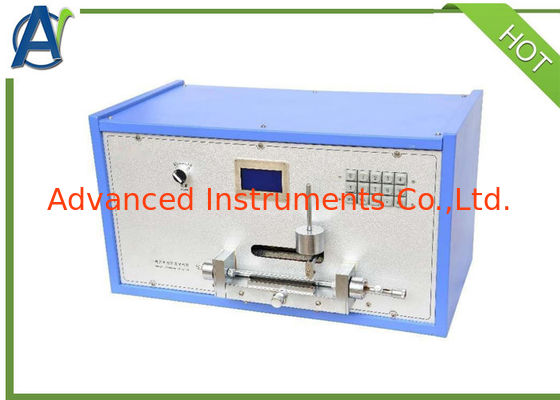

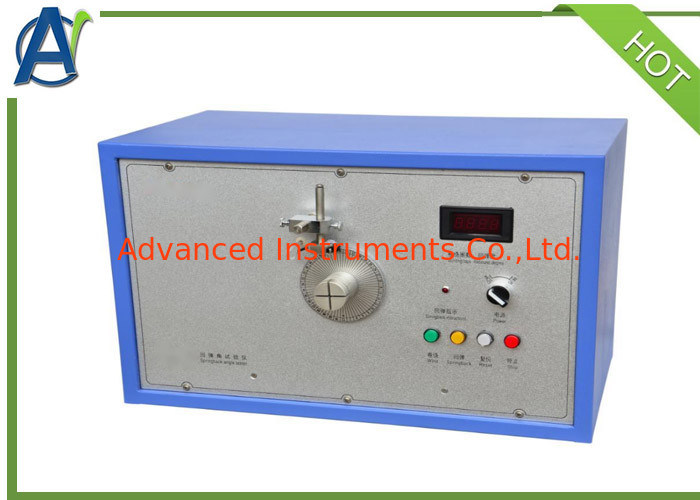

Automatic Springiness Test Apparatus for Copper Wires by IEC60851-3

Automatic Springiness Test Apparatus for Copper Wires by IEC60851-3

    • Automatic Springiness Test Apparatus for Copper Wires by IEC60851-3
    • Automatic Springiness Test Apparatus for Copper Wires by IEC60851-3
    • Automatic Springiness Test Apparatus for Copper Wires by IEC60851-3
    • Automatic Springiness Test Apparatus for Copper Wires by IEC60851-3

    Detail produk:

    Tempat asal: CINA
    Nama merek: AI
    Sertifikasi: ISO
    Nomor model: AIHTJ-16

    Syarat-syarat pembayaran & pengiriman:

    Kuantitas min Order: 1 SET Alat Uji Kekenyalan
    Harga: Bisa dinegosiasikan
    Kemasan rincian: Satu kotak Kayu Lapis untuk Alat Uji Kekenyalan
    Waktu pengiriman: 20 hari
    Syarat-syarat pembayaran: Western Union, T/T, L/C
    Menyediakan kemampuan: 10 set/bulan
    Hubungi sekarang
    Detil Deskripsi produk
    Standar uji: IEC60851-3 Kecepatan berliku dan rebound: ≥3m/dtk
    Catu Daya: AC220V ± 10% 50Hz Konsumsi daya: <80W
    Dimensi: 560×314×360mm Berat: 25kg
    Warna: Biru Bahasa: bahasa inggris

    Performance Characteristics
    1.Executive standard: GB/T4074.3-2008,IEC60851-3; Inspection standard: JB/T4279.4-2008
    2.This Springiness Test Apparatus is used to measure the rebound resistance of enameled round wires with nominal conductor diameter of between 0.080mm and 1.600mm;
    3.This Springiness Apparatus adopts SCM control for fast operation and strong anti-interference capacity;
    4.Automatic stop after winding 5 circles;
    5.Sensor is unnecessary to be adjusted for samples of different specifications;
    6.Coils slowly loosen during springiness, free from abrupt springiness or bounce.
    7.LED automatically records and displays test results;
    8.Error between displayed value and indicating value on dial is no more than ±1°;
    9.Simple operation, high sensitivity and excellent repeatability.

    Technical Parameters

    Winding and rebound speed of sample 7±0.5 r /min
    Input power AC220V±10%,50Hz
    Power consumption <80W
    Overall dimensions L×W×H 560×314×360mm
    Weight 25kg


    Preparation of weight: Unit: N

    Load 0.25 0.50 1.0 2.0 4.0 8.0 12.0 15.0
    Error ± 0.02 0.05 0.1 0.2 0.4 0.8 1.0 1.0


    Preparation of test bar: Unit: mm

    Diameter of test bar 5 7 10 12.5 19 25 37.5 50
    Error ± 0.16 0.18 0.18 0.22 0.26 0.26 0.32 0.32



    Automatic Springiness Test Apparatus for Copper Wires by IEC60851-3Automatic Springiness Test Apparatus for Copper Wires by IEC60851-3
