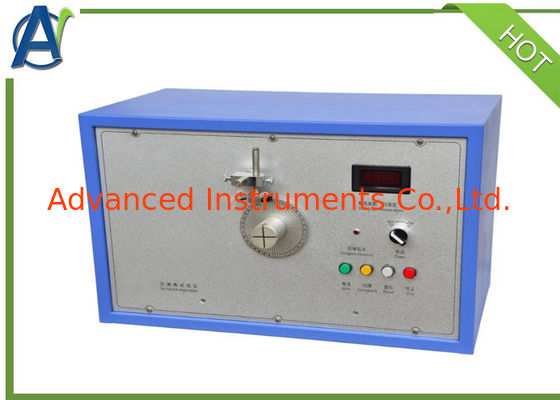

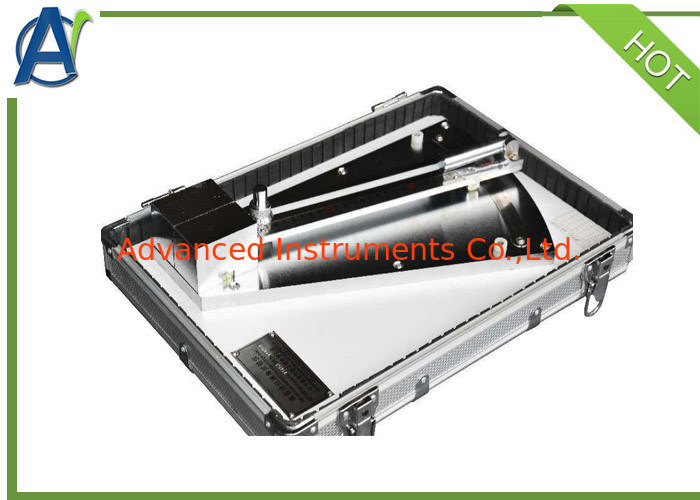

Name: Springiness Angle (Softness) Test Device for Flat and Round Wires by IEC60851-3
Brand: Advanced Instruments Co.,Ltd
SKU: AIBYH-52
Availability: InStock

Rumah Produk peralatan pengujian kabel

Springiness Angle (Softness) Test Device for Flat and Round Wires by IEC60851-3

Detail produk:

Tempat asal:	CINA
Nama merek:	AI
Sertifikasi:	ISO
Nomor model:	AIBYH-52

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 SET alat uji kelembutan
Harga:	Bisa dinegosiasikan
Kemasan rincian:	Satu kotak kayu lapis untuk perangkat uji kelembutan
Waktu pengiriman:	20 hari
Syarat-syarat pembayaran:	Western Union, T/T, L/C
Menyediakan kemampuan:	10 set/bulan

Hubungi sekarang

Detil Deskripsi produk

Standar uji:	IEC60851-3	Sudut Bending:	>30°
Catu Daya:	AC220V ± 10% 50Hz	Dimensi:	460×315×120mm
Berat:	20kg	Warna:	Biru
Bahasa:	bahasa inggris	Kisaran slider bergerak yang dapat disesuaikan:	28~252mm

Performance Characteristics
1.Executive standard: GB/T4074.3-2008,IEC60851-3
2.This Springiness Angle (Softness) Test Device is used to detect the rebound elasticity of enameled flat wires with narrow side of 0.800mm- 5.600mm and of enameled round wires with nominal conductor diameter of 1.600mm- 5.600mm.

Technical Parameters

Bending angle of sample	>30°
Minimum resolution for quadrant dividing rule	0.2°
Adjustable range of movable slider (contact)	28~252mm
Overall dimensions L×W×H	460×315×120mm
Weight	20kg

Springiness Angle (Softness) Test Device for Flat and Round Wires by IEC60851-3
