Name: Intelligent Plate Vulcanizing Equipment with Self-locking Safety Visual Door Cover
Brand: Advanced Instruments Co.,Ltd
SKU: AIC21124A
Availability: InStock

Rumah Produk peralatan pengujian kabel

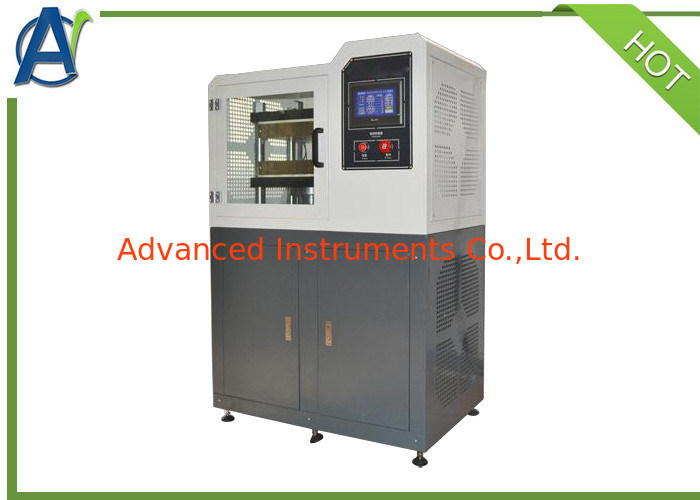

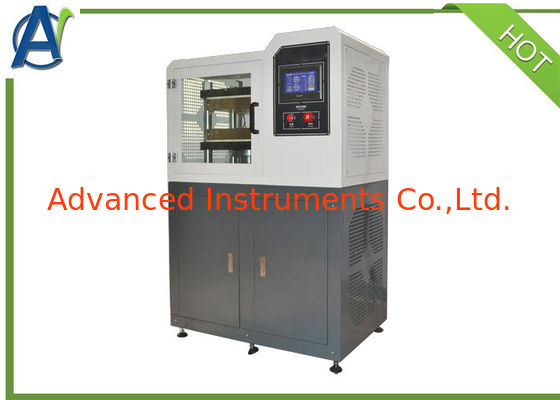

Intelligent Plate Vulcanizing Equipment with Self-locking Safety Visual Door Cover

Detail produk:

Tempat asal:	CINA
Nama merek:	AI
Sertifikasi:	ISO
Nomor model:	AIC21124A

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 SET Peralatan Vulkanisir Pelat Cerdas
Harga:	Bisa dinegosiasikan
Kemasan rincian:	Kasus Kayu Lapis
Waktu pengiriman:	25 hari
Syarat-syarat pembayaran:	Western Union, T/T, L/C
Menyediakan kemampuan:	50 set per bulan

Hubungi sekarang

Detil Deskripsi produk

Kapasitas:	20t	Kisaran Suhu:	Suhu kamar ~ 200 ℃
Sistem Pengendalian:	Layar sentuh berwarna PLC yang dapat diprogram	Ukuran pelat tekan:	30030060mm
Menekan lapisan pelat:	Satu Lapisan	Waktu buang:	0~10
Dimensi keseluruhan:	920×600× 1360mm	Berat:	688KG
Warna:	Putih dan Abu-abu	Catu Daya:	AC380V,20A

Product description:

Put the raw materials into the casting mould, and fix it between electric heating plates with pressure and a certain temperature, make the raw materials to be a mould for the test, it is a basic tool to produce a plenty of compounding for factories.

Intelligent plate vulcanizing equipment is equipped with PLC program control color touch screen, man-machine interface operating system, which is able to set pressure, temperature, time and times in the vulcanizing process that is displayed and monitored timely, all of the mould programs are completed automatically, advanced and reliable.

Typical applications:

• Detection of raw materials’ gels(fisheyes), black spots and smears

• Tabletting of raw materials, color matching, mixture, and sample making of raw materials

• Physical property test

• Materials research and development

Specifications:

Capacity	20T (optional)
Temperature range	Room temperature ~ 200℃
Program controller	PLC programmable color touch screen, man-machine operating interface
Pressing plate size	30030060mm
Pressing plate layers	Single layer
Exhaust times	0 ~ 10 times settable
Oil hydraulic system	Proportional hydraulic flow valve closed loop control system
Safety protection	Self-locking safety visual door cover
Dimensions(WDH)	920×600× 1360mm
Power supply	3v, AC380V,20A
Weight	About 688Kg
